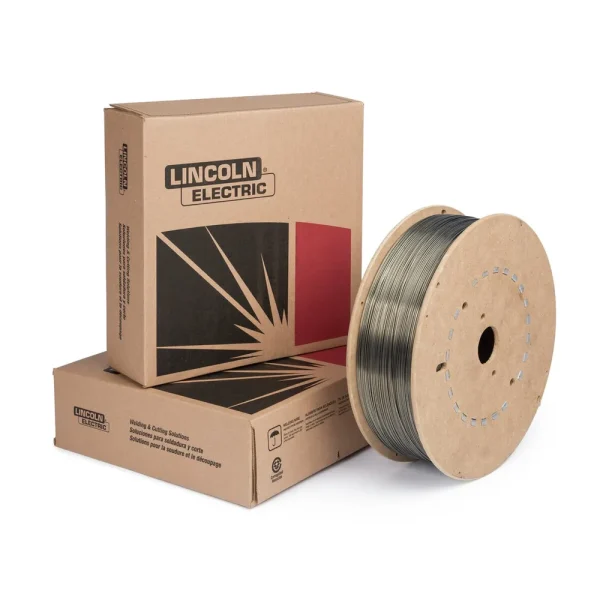

UltraCore® HD-C is a high deposition, all position E71T1 gas-shielded flux-cored electrode. Designed with a fast-freezing slag to make it easy for the operator to weld at high deposition rates, even when welding out-of-position. Intended for use with 100% CO2 shielding gas.
Features
- High Deposition Rates – increase weld deposition up to 10 lbs/hr out-of-position
- Flat Bead Appearance – fast freezing slag for a flat bead shape and increased productivity in all positions, including vertical up
- Wide Operating Range – operators can set the machine on a single setting and weld in all positions
- Little or No Pre-Weld Clean up Required – weld over light rust, mill scale, and primer
Specifications
- Country of Origin : United States
- Consumables Material : Flux-cored (FCAW-G) Wire
- LECO Consumable Diameter : 0.045 in (1.1 mm)
- LECO Consumable Package : 33 lb Spool
- Consumable Diameter (in) : 0.045
- Consumable Diameter (mm) : 1.1
- Winding : RDM
- Welding Process : FCAWG
- Alloy Type : SM
Consumables Classification
- AWS A5.20 : E71T-9C-H8
- AWS A5.36 : E71T1-C1A2-CS1-H8
