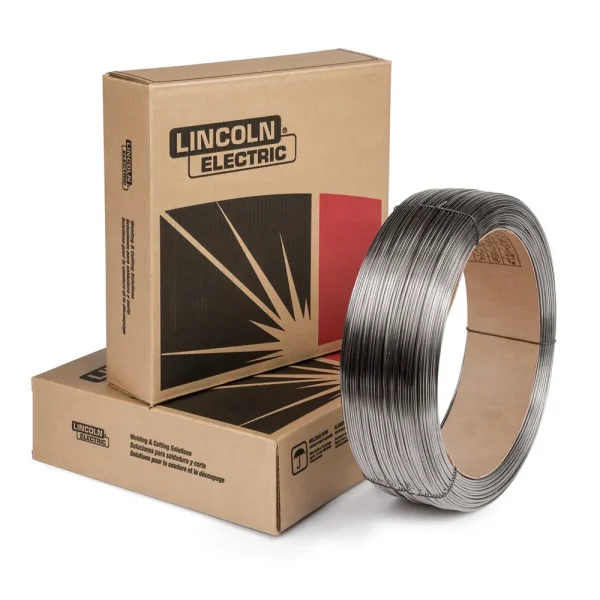

Innershield® NR®-232 self-shielded flux-core wire is designed for high deposition, out-of-position welding for structural fabrication in seismic zones. Recommended for single or multiple pass welding of 4.8 mm (3/16 in) and heavier carbon steel. Typical applications include structural fabrication, general plate fabrication, hull plate and stiffener welding on ships and barges, and machinery parts, tacks, hoppers, racks and scaffolding.
Features
- High deposition rates for out-of-position welding
- Penetrating arc
- Fast freezing, easy to remove slag system
- Meets AWS D1.8 seismic lot waiver requirements
- Notes: AWS D1.8 structural steel seismic supplement test data can be found at the Lincoln Electric Certificate Center.
Specifications
- Country of Origin : United States
- Warranty Length : 1 Year
- Consumables Material : Flux-cored self-shielded (FCAW-S) Wire
- LECO Consumable Diameter : 5/64 in (2.0 mm)
- LECO Consumable Package : 50 lb Coil
- Consumable Diameter (in) : 5/64
- Consumable Diameter (mm) : 2.0
- Winding : NOS
- Welding Process : FCAWS
- Alloy Type : SM
Consumables Classification
- AWSA5.20/A5.36 : E71T-8-H16|E71T8-A2-CS3-H16
- EN ISO 17632-A : T 42 2 Y N 2 H10
