Designed for high deposition, out-of-position welding for structural fabrication in seismic zones. Recommended for single or multiple pass welding of 4.8 mm (3/16 in) and heavier carbon steel.
Features
- High deposition rates for out-of-position welding
- Penetrating arc
- Fast freezing, easy to remove slag system
- Meets AWS D1.8 seismic lot waiver requirements
- Notes: AWS D1.8 structural steel seismic supplement test data can be found at the Lincoln Electric Certificate Center.
Specifications
- Country of Origin : United States
- Consumables Material : Flux-cored self-shielded (FCAW-S) Wire
- LECO Consumable Diameter : 0.072 in (1.8 mm)

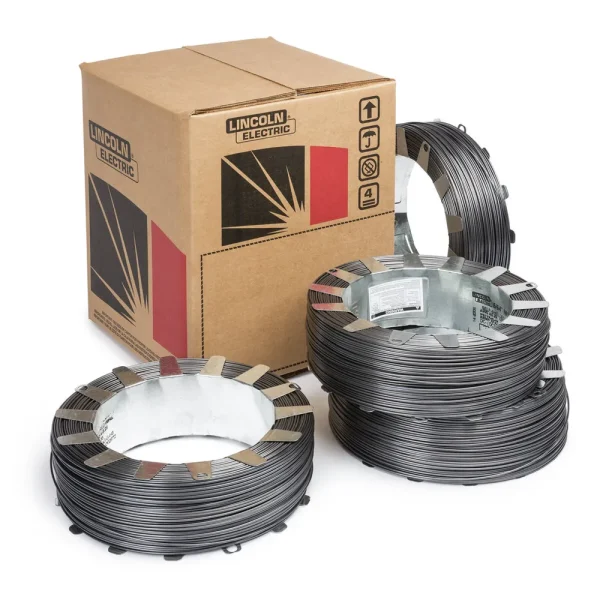

- LECO Consumable Package : (4) 13.5 lb Coil
- Consumable Diameter (in) : 0.072
- Consumable Diameter (mm) : 1.8
- Winding : NOS
- Welding Process : FCAWS
- Alloy Type : SM
Consumables Classification
- AWSA5.20/A5.36 : E71T-8-H16|E71T8-A2-CS3-H16
- EN ISO 17632-A : T 42 2 Y N 2 H10
