This Multiprocess welder includes MIG, Flux cored, Stick, and DC TIG processes in one machine. The versatile machine is made to work on a variety of projects. Weld materials up to 3/8″. Choose between 120 V or 240 V input power.
Features
- Versatility with one machine that provides MIG, DC TIG and stick capabilities.
- With two knobs and a process button, setting up or changing over this machine is quick.
- Makes setup quicker by offering three grooves — two for different size solid wire and a third for flux-cored wire.
- Spool guns enhance feedability and reduce “bird-nesting” associated with soft aluminum wires. No additional control box or adapter is required to connect the SpoolRunner
100 spool gun.
- Experience smooth, spatter-free starts. The run-in feature automatically slows the wire feed speed to a pre-set speed prior to arc initiation, improving arc starts.
- Five-year warranty on transformers, stabilizers and main rectifiers; three years on generators, PC boards and drive systems; and one year on guns (MIG, plasma and TIG torches).
- Allows you to connect to common 115 or 230 V power receptacles without the use of any tools – simply choose the plug that fits the receptacle.

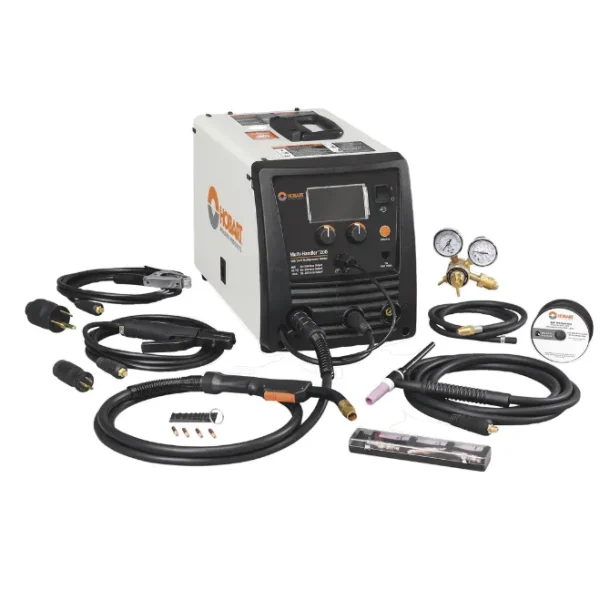

Includes
- Comfortable 10 ft. (3m) HR-100 gun
- 10 ft. (3 m) electrode cable with heavy-duty holder
- 10 ft.(3m) work cable with clamp
- Power cord and MVP plugs for 120 and 240 V
- Built-in gas solenoid valve and dual-gauge regulator with gas hose.
- Sample spool of .030 in. (0.8 mm) solid wire
- Quick Select (TM) drive roll for .024 in (0.6mm) or .030/.035 in. (0.8/0/9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire
- .030 and .035 contact tips
- Material Thickness Gauge
- Insulator nozzles (#4,#5,#6), collet, collet body, electrode with 1/16 and 3/32 in. tungsten
- 12.5 ft. (3.8 m) TIG torch with backcap, nozzle
Does Not Include
- RFCS-RJ45 remote foot control
- Shielding gas and safety equipment not included.
Specifications
- Country of Origin : China
- Length : 20.8
- Width : 10.6
- Height : 13.4
- Weight : 38.4
- Max Open Circuit Voltage (VDC) : 63
- Welding Mode : CC/CV
- Metal Type : Most Metals
- Multiprocess Specifications : [[c2759a9a5d1a]], [[cea130206b8a]], [[8e1ef2eed565]], [[4d3e5eba7848]], [[fb5d1bad24fe]], [[73827a97e606]], [[dd80cf9a95b7]], [[5ee0f5636015]], [[b8ac54d6dd1d]], [[f656e9ee5941]], [[d6d5e107e916]], [[07192407bda6]]
- Spool Size : 4 in (101.6 mm) and 8 in (203.2 mm)
- Weld Output : CC,CV
- Process : MIG (GMAW)Flux Cored (FCAW)Stick (SMAW)DC-TIG (GTAW-DC)
- Min Wire Feed Speed IPM (IPM) : 60
- Max Wire Feed Speed IPM (IPM) : 650
- Input Phase – To Be Deleted : 1Phase
- Input Phase : 1-Phase
- Amperage Min (A) : 30
- Amperage Max (A) : 200
- Amperage Range : 30 A – 200 A
- Input Hz : 50/60 Hz
- Display Min Thickness Mild Steel : 24 ga.
- Display Max Thickness Mild Steel : 3/8 in.
- Material Thickness Display : Mild Steel 24 ga. (0.5 mm) – 3/8 in. (9.5 mm)
