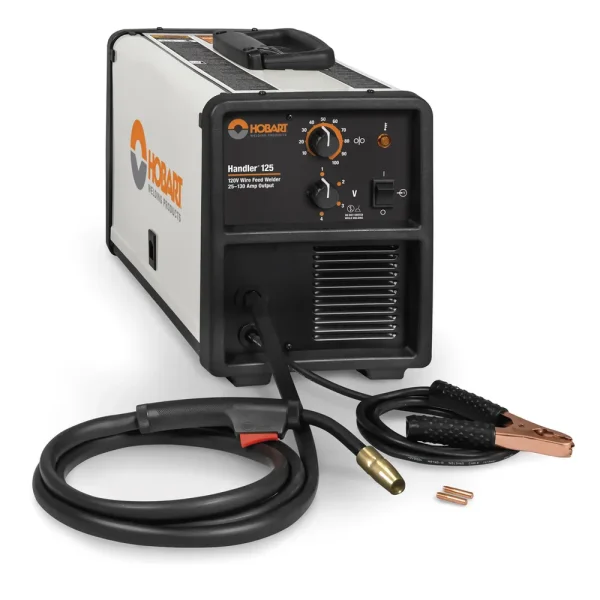

The HOBART® Handler® 125 MIG Welder is a versatile and efficient tool designed for both novice and experienced welders alike. With a robust output range of 25 to 130 Amps, this welder can handle a variety of materials, including mild steel and stainless steel, with thicknesses ranging from 24 gauge to 3/16 inch. Its user-friendly features, such as the built-in contactor that keeps the wire cold until the trigger is pulled, and a factory-installed gas solenoid for easy transitions between flux-cored and MIG welding, enhance its usability. Additionally, the durable feed head with an adjustable tension lever ensures a positive wire feed, while the self-resetting thermal overload protection guarantees reliability during extended use. Compact in size yet powerful, this welder is an excellent choice for those seeking quality and performance in their welding projects.
Features
- Four output voltage settings: Four voltage ranges allow you to adjust the arc for different thicknesses.
- Factory-installed gas solenoid: Easy for you to change from flux-cored wire to MIG welding.
- Durable feed head with quick-release drive roll tension lever: Positive feed with adjustable tension gives you easy access to thread new wire.
- Self-resetting thermal overload protection: Protects power transformer from thermal overload to provide you maximum reliability.
- Broad output range of 25 – 130 Amps.: Allows you to weld up to 1/8 in. steel with flux-cored wire.
- Built-in contactor: Eases use and excellent safety feature which makes wire electrically “cold” until trigger is pulled.
- Spool hub assembly accommodates 4- or 8-inch spools: Offers you flexibility to use small or large spools of wire to better suit your welding needs.
Specifications
- Max Open Circuit Voltage : 28 VDC
- Rated Output : 80 A @ 25% duty cycle
- Weld Output : CV
- Min Wire Feed Speed : 88 IPM
- Input Phase : 1-Phase
- Display Min Thickness – Mild Steel : 24 ga (0.8 mm)
- Display Max Thickness – Mild Steel : 3/16 in
- Max Wire Feed Speed : 545 IPM
- Input Voltage : 110/115/120 V
- Current Type : DC
- Weldable Metals : Stainless Steel;Steel
- Material Thickness Display : Mild Steel 24 ga. (0.8 mm) – 3/16 in. (4.8 mm)
- Wire Diameter Display : Solid Steel 0.024 in. – 0.03 in.;Flux Cored 0.03 in. – 0.035 in.;Flux Cored 0.8 mm. – 0.9 mm.
- Wire Feed Speed Display : 88 IPM – 545 IPM
- Height : 13.5 EA
- Length : 19.4 EA
- Weight : 57.5 EA
- Width : 10 EA
- Country of Origin : China
