Designed for both novice and experienced welders, the Handler 140 MIG Welder from Hobart Filler Metals offers a robust solution for a variety of welding tasks. With the ability to weld materials ranging from 24 gauge to ¼ inch mild steel, this welder features a smooth and stable arc performance, ensuring high-quality results across different thicknesses. Its lightweight design at just 57 pounds enhances portability, allowing you to easily transport it to job sites or move it around your workshop.Equipped with a quick-select drive roll, the Handler 140 minimizes setup time by accommodating various wire sizes, while the self-resetting motor protection safeguards the wire feed system from overloads. The five-position voltage control allows for precise adjustments, and the industrial cast aluminum wire drive system ensures durability and professional-grade performance. Whether you’re working with aluminum, stainless steel, or solid steel, this MIG welder combines convenience with reliability, making it an excellent addition to any welding toolkit.
Features
- Protects wire feed system from overload, you won’t need to change or reset the circuit breaker.
- Smooth, stable arc on all thicknesses allows you the best arc possible.
- Durable wire feed provides you professional performance.
- Five voltage ranges allow you to fine-tune the arc.

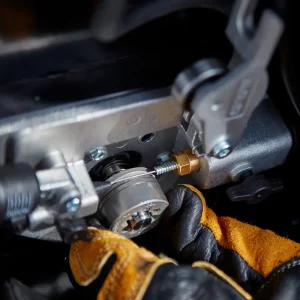

- Less of your time consumed in setup by offering three grooves – two for different size solid wire and a third for flux-cored wire.
- Easier to transport: increased ability to weld where you need to weld.
- Easier and quicker for you to change polarity between solid or tubular wire.
- Increased visibility so you can make adjustments more easily.
- Protects power transformer from thermal overload to provide you maximum reliability.

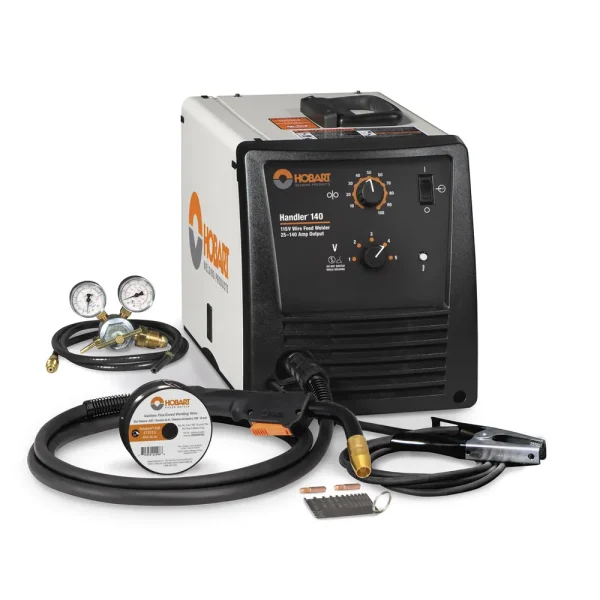

Includes
- Comfortable 10 ft. (3 m) HR-100 gun
- Owner’s manual with installation, operation and maintenance guidelines.
- 10 ft. (3 m) work cable with clamp
- Built-in gas solenoid valve and dual-gauge regulator with gas hose
- Spool hub assembly accommodates 4 or 8 in. spools
- Sample spool of .030 in. (0.8mm) self-shielding flux-cored wire
- .030 in. (0.8mm) contact tips
- Quick Select
drive roll for .024 in. (0.6mm) or .030/.035 in. (08/.9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire
- Power cord with plug
- Welding guide and material thickness gauge
- Comfortable 10 ft. (3m) HR-100 gun
Does Not Include
- Shielding gas and safety equipment not included.
Specifications
- Country of Origin : United States
- Length : 19.5
- Width : 10.625
- Height : 12.375
- Weight : 57
- Max Open Circuit Voltage (VDC) : 28
- Rated Output : 90 A @ 20% duty cycle
- Weld Output : CV
- Amperage Min (A) : 25
- Amperage Max (A) : 140
- Amperage Range : 25 A – 140 A
- Min Thickness – ga – Mild Steel (ga) : 24
- Min Wire Feed Speed – IPM (IPM) : 40
- Input Phase – To Be Deleted : 1Phase
- Input Phase : 1-Phase
- Display Min Thickness – Mild Steel : 24.00 ga
- Display Max Thickness – Mild Steel : 1/4 in.
- Max Wire Feed Speed – IPM (IPM) : 700
- Input Voltage : 110/115/120 V
- Max Thickness – in – Mild Steel (in) : 0.25
- Current Type : DC
- Weldable Metals : Aluminum|Stainless Steel|Steel
- Input Hz : 60 Hz
- Material Thickness Display : Mild Steel 24 ga. (0.5 mm) – 1/4 in. (6.4 mm)
- Wire Diameter Display : Stainless 0.024 in. – 0.035 in.|Stainless 0.6 mm. – 0.9 mm.|Solid Steel 0.6 mm. – 0.9 mm.|Solid Steel 0.024 in. – 0.035 in.|Flux Cored 0.03 in. – 0.035 in.|Flux Cored 0.8 mm. – 0.9 mm.
- Wire Feed Speed Display : 40 IPM – 700 IPM
