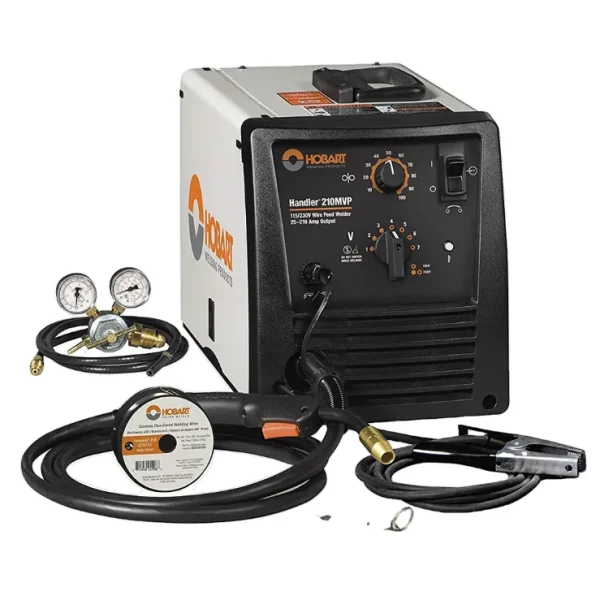

Experience the power and versatility of the Handler® 210MVP MIG Welder from Hobart Filler Metals, designed for both novice and experienced welders alike. With a maximum output of 210 amps and the capability to weld mild steel up to 3/8 inches thick, this welder is perfect for a variety of applications, including aluminum, stainless steel, and steel. Its dual-voltage feature allows for easy connection to standard 115V or 230V outlets without the need for tools, while the integrated spool gun control circuitry and quick select drive roll streamline setup and operation.The Handler® 210MVP is equipped with advanced features such as infinite wire feed speed control and multiple voltage settings, ensuring optimal arc performance and minimal spatter for a clean finish. Safety and convenience are paramount, with built-in short circuit protection and a contactor that keeps the wire electrically “cold” until you’re ready to weld. Whether you’re tackling a home project or a professional job, this MIG welder is a reliable companion that combines power, portability, and ease of use.
Features
- Max 210 amps in small portable case: Sized for you to easily transport the unit to the jobsite with the power to weld 3/8 in. mild steel.
- 7 (230 V) and 4 (115V) voltage settings, with infinite wire feed speed control: Allows you to fine control the output parameters for improved arc performance with less spatter for a better bead appearance and less clean up.
- Integrated spool gun control circuitry is standard: Eliminates your need for an additional control box or adaptor to connect the SpoolRunner 100 spool gun.
- Dual-voltage capability with MVP (multi-voltage plug): Allows you to connect to common 115 or 230 V power receptacles without the use of any tools – simply choose the plug that fits the receptacle.
- Door Chart with initial settings: You are able to quickly reference initial settings for different wires, gases, materials, and thicknesses. Provides you a quick starting point whether you are a novice or professional.
- Industrial cast aluminum wire drive system: Durable wire feed provides you professional performance
- Convenient polarity changeover: Easier and quicker for you to change polarity between solid or tubular wire.
- Quick Select drive roll: Less of your time consumed in setup by offering three grooves – two for different size solid wire and a third for flux-cored wire.
- Short circuit protection: Protects unit against current overload.
- Self-resetting thermal overload protection: Protects power transformer from thermal overload to provide you maximum reliability.
Specifications
- Max Open Circuit Voltage : 34 VDC
- Rated Output : 115 V, 90A @ 20%,230V, 150A @ 30%
- Weld Output : CV
- Amperage Min : 25 A
- Amperage Max : 210 A
- Amperage Range : 25 A – 210 A
- Min Wire Feed Speed : 40 IPM
- Input Phase : 1-Phase
- Display Min Thickness – Mild Steel : 24 ga. (0.5 mm)
- Display Max Thickness – Mild Steel : 3/8 in. (9.5 mm)
- Max Wire Feed Speed : 770 IPM
- Input Voltage : 110/115/120 V;220/230/240 V
- Current Type : DC
- Weldable Metals : Aluminum;Stainless Steel;Steel
- Input Hz : 60 Hz
- Material Thickness Display : Mild Steel 24 ga. (0.5 mm) – 3/8 in. (9.5 mm)
- Wire Diameter Display : Stainless 0.024 in. – 0.035 in.;Stainless 0.6 mm. – 0.9 mm.;Solid Steel 0.6 mm. – 0.9 mm.;Solid Steel 0.024 in. – 0.035 in.;Flux Cored 0.03 in. – 0.045 in.;Flux Cored 0.8 mm. – 1.2 mm.
- Wire Feed Speed Display : 40 IPM – 770 IPM
- Height : 12.375 EA
- Length : 19.5 EA
- Weight : 79 EA
- Width : 10.625 EA
- Country of Origin : United States
