Harris Pipeliner Combination Pipeliner Outfit – Heavy | 4403234

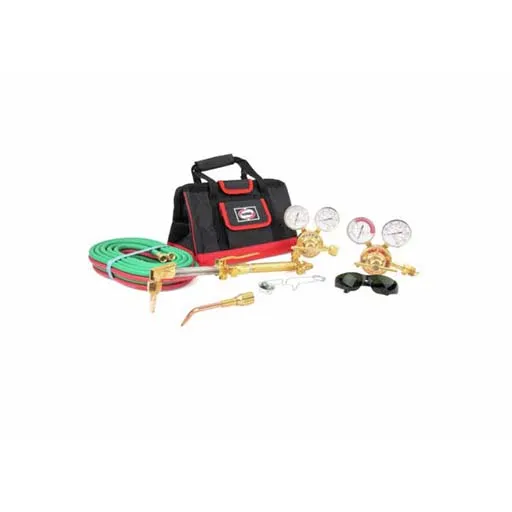

Model 43-425-510 standard combination Pipeliner® kit for use with all fuel gases/acetylene

Model 43425-510 Pipeliner Classic Standard combination kit contains all the major components needed for cutting, welding, brazing and heating using all fuel gases and acetylene. It features Harris’ premium, single-stage regulators with large easy-to-read 2.5″ dual scale brass gauges, a “T” screw adjusting handle for precise pressure adjustments, one-piece encapsulated seats for longer service life and a 7-year warranty. The high-capacity handle maximizes the performance of the largest Harris tips and is equipped with FlashGuard check valves. The cutting attachment has brazed triangular stainless steel tubes, fold forward cutting lever, ease-on cutting valve and forged solid brass head for years of safe, dependable service, even under the most abusive conditions. Also included are a heavy duty pressure mixer, cutting welding/brazing tip and insulated tool bag. All other components in the kit have a 1-year warranty. As supplied the kit is capable of cutting up to a 1″ (25.4mm) plate and welding up to a 1⁄8″ (3.2mm) plate. The outfit can also cut up to a 5″ (127.0mm) plate and weld up to a 1″ (25.4mm) plate with optional larger tip(s)

Features
