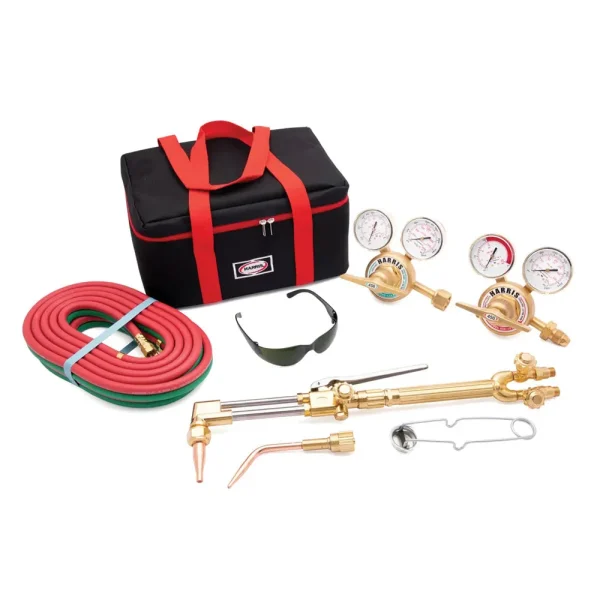

Model VH31-450-510 Victor® compatible Ironworker® Classic Deluxe VXT extra-heavy-duty combination welding and cutting kit for use with all fuel gases/acetylene includes Model 450 regulators with many of the premium features found only in high priced regulators. The regulators have large easy-to-read dual scale 2.5″ brass gauges, a brass “T” screw handle for precise pressure adjustments, one-piece encapsulated seats for longer service life stainless steel diaphragm and Harris’ exclusive tamper-proof self-reseating safety relief valve making it a standout for heavy-duty combination welding applications and a 7-year warranty. Model VH31- combination torch handle provides the highest flow possible allowing the use of larger tips. The handle is designed with tube-within-a-tube construction and is “O”-ring sealed for greater strength and higher capacity. This handle is also equipped with FlashGuard® check valves and external flashback arrestors. Model VH24 cutting attachment features brazed triangular stainless steel tubes and stainless steel lever making it lightweight while providing exceptional strength and rigidity. The mixer design resists damage due to flashback. A coupling nut with locking ring protects the cutting attachment seat. The cutting oxygen valve has an ease-on feature for more precision and smoother controlled starts. The forged solid brass head provides years of safe dependable service even under the most abusive conditions. Also included are an equal pressure mixer cutting tip welding/brazing tip Shade 5 safety glasses (ANSI Z87.1 CE) ignitor and 1/4″ x 20′ hose packaged in an insulated tool bag. All other components in the kit have a 1-year warranty. The kit is capable of cutting up to 1” (25.4mm) plate with supplied tip cutting up to 8″ (203.2mm) plate with optional tip(s) welding up to 1/16” (1.6mm) plate with supplied tip and welding up to ‘1/2” (12.7mm) plate with optional tip(s).
Features
- Complete Victor® compatible Ironworker® Deluxe kit for most cutting and welding projects
- Extra-heavy-duty combination V-Series® kit is designed to use all fuel gases/acetylene
- The economically priced Model 450 industrial regulator has large, easy-to-read, dual scale 2.5″ brass gauges, brass “T” screw handle, stainless steel diaphragms and tamper-proof, self-reseating safety relief valve
- The regulators have a one-piece encapsulated seat design with internal filter and PTFE Teflon® seat to protect them from particulate contamination
- The Victor®-compatible Model VH31 torch handle has tube-within-a-tube construction with threaded connections, “O” ring seals and is equipped with replaceable FlashGuard® check valves
- The Victor®-compatible Model VH24 cutting attachment features brazed triangular stainless steel tubes and cutting lever, fold-forward cutting lever, ease-on cutting valve and solid brass head
- The Victor®-compatible Model V-W “E” equal or positive pressure mixing system resists damage due to flashback
- Kit includes Victor®-compatible Model V1-101-1 cutting tip and Model 23A90-5 welding/brazing tip
- Accessories include Shade 5 safety glasses (ANSI Z87.1 CE Weld), Handheld ignitor, 1/4″ x 20′ twin “R” grade hose and Harris black and red insulated tool kit bag
- Cuts up to 8″ (203.2mm) plate with optional tip(s);Welds up to 1/2″ (12.7mm) plate with optional tip(s). Optional tips sold separately.
