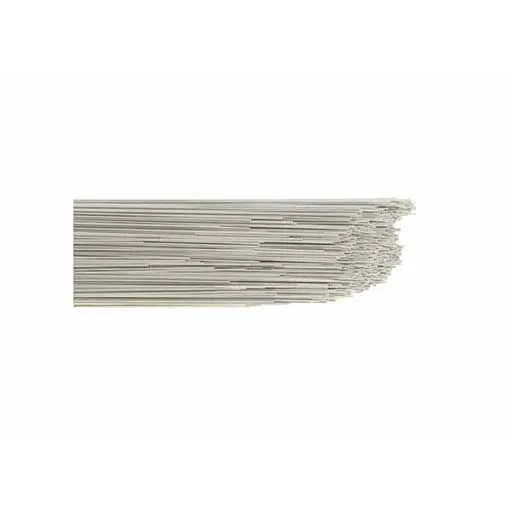

HARRIS 309L TIG Rod – 0.035 in – 10 lb | 309LTF0

Original price was: $23.72.Current price is: $7.12.

Availability: 5 in stock

🚚 Free Shipping over $38
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: hwe309ltf0
CATEGORY: TIG Rod
Description

HARRIS 309L TIG Rod – 0.035 in – 10 lb

309L stainless steel GTAW (TIG) welding alloy has similar usage as 309, but the 0.03% maximum carbon content, reduces the possibility of carbide precipitation that can cause weld corrosion, to increase resistance to intergranular corrosion. Used for welding similar alloys in wrought or cast form. Occasionally used for welding 18-8 base metals when severe corrosion conditions exist, and, at times, welding dissimilar steels. Conforms to AWS A5.9. Packaged for portable welding machines. Conveniently packaged for point-of-purchase display.

Features

  • Stainless steel 309L TIG welding rod welds 304 and similar base metals in wrought or cast form where severe conditions may exist
  • Sometimes welds dissimilar steels
  • Lower carbon content (.03% max.) resists carbide precipitation that can cause weld corrosion
  • 87,000 psi tensile strength (as welded)
  • 58,000 psi yield strength (as welded)
  • 40% elongation; 60% reduction of area (as welded)
  • 85 HRB Rockwell B hardness (as welded)
  • 160 HB Brinell hardness (as welded)
  • 105 ft./lb. @ room temperature Charpy V (as welded)
  • Conforms to ANSI/AWS A5.9 & ASME SFA 5.9 ER 309L
  • Specifications

    Brand Harris Products
    Container Size 10 lb
    Container Type Box
    Overall Length 36 in
    Series 309L
    Tensile Strength 87000 psi
    Yield Strength 58000 psi
    MFG 309LTF0
