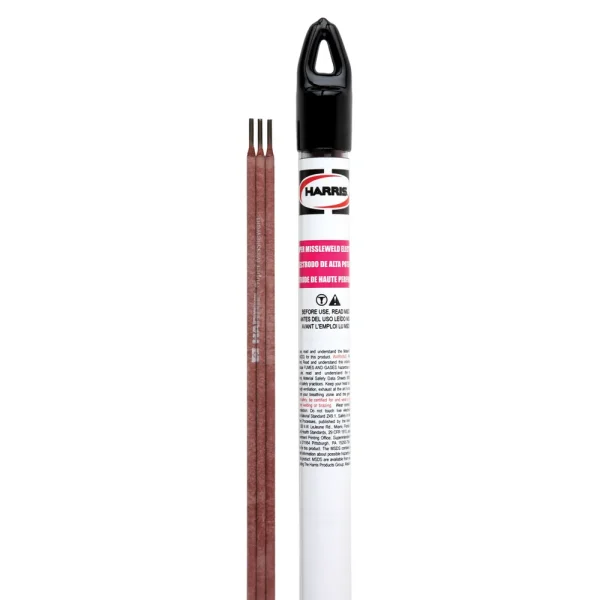

SuperMissileweld® is the ultimate electrode for welding steels with the highest strength and maximum ductility (AC/DC). It assures non-cracking welds on problem steels like high carbon steels, tool steels, stainless steels, spring steels, manganese steels and dissimilar steels. Frictional resistance is excellent, abrasive resistance is mild and it will not respond to heat treatment. Use with either AC or DC reverse polarity. Super Missileweld is particularly advantageous when the alloy content of the steel to be welded is known. This unique electrode is so versatile that its applications are virtually too multiple in number to specify. For years, it has been a maintenance and repair “stand-by” in every industry throughout the world. Conveniently packaged for point-of-purchase display.
Features
- Ultimate maintenance and repair electrode for welding steels
- Welds using SuperMissileweld® have the highest strength and maximum ductility
- Provides maximum ductility for welding “problem” steels
- Assures dense, non-cracking welds
- This unique electrode is so versatile that its applications are virtually too numerous to specify
- Will not respond to heat treatment
- Excellent impact and frictional resistance and mild abrasion resistance
- High heat resistant
- Tensile strength 120,000 psi
- Works well on high carbon, too, spring, manganese, dissimilar and stainless steels or when steel content is unknown
Applications
- Welding high carbon steel, tool steel, stainless steel, spring steel, manganese steel, dissimilar steel and steel of unknown composition
Notes
- All parameters are suggested as basic guidelines and will vary depending on joint design, number of passes and other factors.
Specifications
- Country of Origin : US
- Brinell Hardness : 200-300 HB (as deposited)
- Charpy V-notch : 75 ft./lb. @ room temp
- Chemical Composition : Phosphorus 0.5-0.75%;Silicon 2.75-3%;Copper 2.5%;Manganese 0.6-0.75%;Aluminum 1%;Carbon 3-3.5%;Sulphur 0.1%;Nickel 85%
- Classification : Manufactured to Harris’ Internal Engineering Standards
- Current (Amps) : 40-80 amps
- Diameter : 3/32″ (2.38mm)
- Elongation : 22% min
- Length : 9″ (228.6mm)
- Made in USA : Yes
- Material : Specialty
- Polarity : AC or DC Reverse
- Reduction of Area % : 0.3
- Rockwell B Hardness : 93-102 HRB
- RoHS Compliant : No
- Size : 1 ea.
- Tensile Strength (PSI) : Up to 120,000 psi
- Warranty : 1 Year
- Yield Strength (PSI) : Up to 85,000 psi
