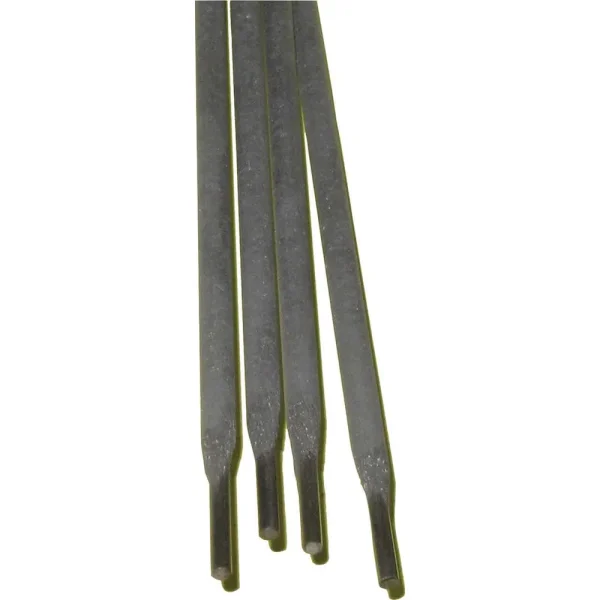

Harris® 65 nickel Iron electrode is a premium nickel-iron alloy electrode (AC-DC). For gray and alloyed cast iron. 65 Nickel is for the repair of all types of cast iron. It yields dense, strong, yet totally machinable deposits. It is ideal for the repair of “Meehanite”, “Ni-Resist”, ductile iron and for the joining of cast iron to steel. Typical applications embody the repair of castings, housings, gear teeth, motor, machine bases, etc. Conveniently packaged for point-of-purchase display.
Features
Applications
- Repair of all types of cast iron
- Meehanite
- Ni-Resist
- Ductile iron
- Joining cast iron to steel
- Castings
- Housings
- Gear teeth
- Motor blocks
- Machine bases
- Premium nickel-iron alloy electrode used for gray and alloyed cast iron.
- Spatter-free, high-density, ductile deposits
- Ideal for repair of all types of cast iron, Meehanite, Ni-Resist, ductile iron, and joining cast iron to steel.
- Good machinability – BHN 190-220
- Brinell Hardness of 190-220
- Tensile strength – Up to 72,000 psi
- First choice for thick joints, ductility, multiple passes, welding under restraint, welding cast iron to steel
- Alternate choice for thin sections
- Good corrosion resistance
- All position welding
Notes
- All parameters are suggested as basic guidelines and will vary depending on joint design, number of passes and other factors.
Specifications
- Country of Origin : US
- Brinell Hardness : 190-220 BHN
- Chemical Composition : Carbon 3.00-3.50%;Manganese 0.60-0.75%;Silicon 2.75-3.00%;Sulfur 0.10 max.%;Phosphorus 0.50-0.75%;Nickel 85% min.;Copper 2.5%;Aluminum 1.0;Others 1.0%
- Classification : Manufactured to Harris’ Internal Engineering Standards
- Color : Good color match to cast iron
- Current (Amps) : 50-100 amps
- Diameter : 1/8″ (3.18mm)
- Length : 14″ (355.6mm)
- Machinability : Good to Excellent
- Made in USA : Yes
- Material : Nickel-Iron alloy-Specialty
- Polarity : AC or DC Reverse
- RoHS Compliant : No
- Size : 1 ea.
- Tensile Strength (PSI) : Up to 72,000 psi
- Warranty : 1 Year
- Welding Position : All
