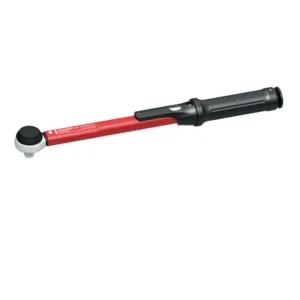

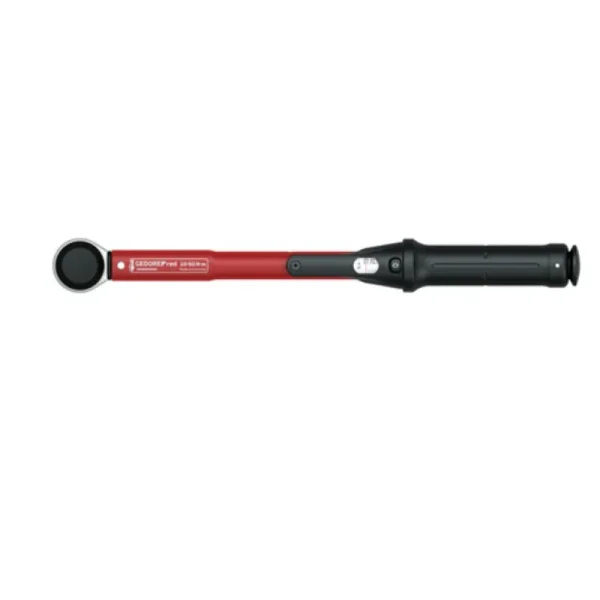

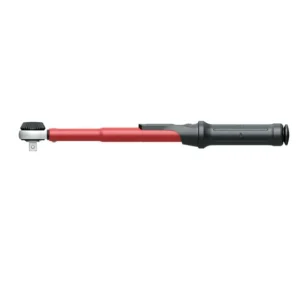

Gedore Torque wrench 3/8 10-50Nm l.335mm 3301871

GEDORE red R58900050 torque wrench 3/8 10-50 N m 335 mm, 3301871

• Adjustable torque wrench with square drive and integrated ratchet function
• Controlled screw tightening from 10 to 50 Nm
• Repetition-accurate and precision-like
• Audible Torque triggering can clearly be heard and felt
• Clockwise and anti-clockwise tightening from switching over the mushroom head/push-through square
• Features:
• Adjustable torque wrench with square drive and integrated ratchet function
• Square drive with ratchet mechanism
• Torque is set by turning the handle
• The set value is fixed through the lock at the end of the handle
• Easy-to-read scale with magnifying glass for Nm, plus 1/10 scale for precision setting
• Tripping accuracy: +/-3 % tolerance of the set scale value

• Total width [mm]: 36 mm
• Total height [mm]: 34 mm
• Total length [mm]: 330 mm
• Nominal width [mm]: 36 mm
• Nominal height [mm]: 34 mm
• Nominal length [mm]: 330 mm
• Net weight [kg]: 0,476 kg
• Distance housing – square drive: 17,5 mm
• Drive type/drive: square socket with knob, serrated
• Drive connector square [metric]: 10 mm
• Drive square inch: 3/8 in.
• Number of teeth: 36
• Tightening direction: Left and right
• Trigger mechanism: Short path triggering
• Torque (max.) [Nm]: 50 Nm
• Torque (min.) [Nm]: 10 Nm
• Range of application: Assembly Maintenance and repair
• Fixed setting: No
• Calibration length: 256,5 mm
• Width of head 1 [mm]: 35,0 mm
• Head height 1 [mm]: 25,3 mm
• vernier Nm: 0,25 Nm
• Precision +/-: +/- 3 %
• Test certificate: DIN EN ISO 6789-2:2017
• Return angle: 10 °
