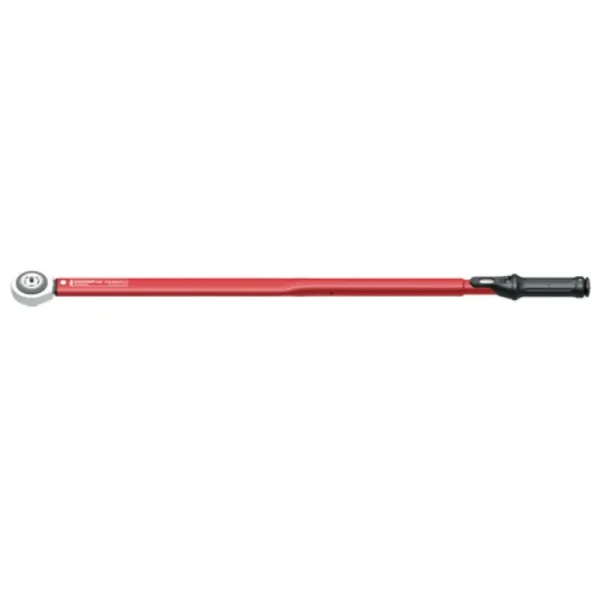

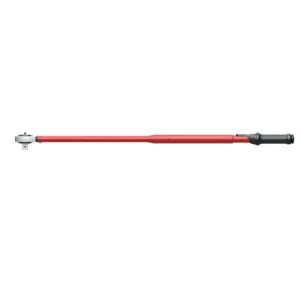

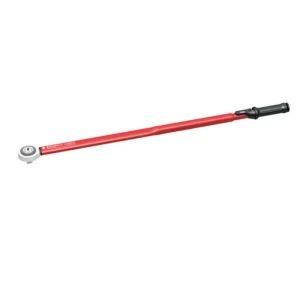

Gedore Torque wrench 3/4 110-550Nm l.955mm 3301220

GEDORE red R78900550 torque wrench 3/4 110-550 N m 955 mm, 3301220

• Adjustable torque wrench with square drive and integrated ratchet function
• Controlled screw tightening from 110 to 550 Nm
• Repetition-accurate and precision-like
• Audible Torque triggering can clearly be heard and felt
• Clockwise and anti-clockwise tightening from switching over the mushroom head/push-through square
• Features:
• Adjustable torque wrench with square drive and integrated ratchet function
• Square drive with ratchet mechanism
• Torque is set by turning the handle
• The set value is fixed through the lock at the end of the handle
• Easy-to-read scale with magnifying glass for Nm, plus 1/10 scale for precision setting
• Tripping accuracy: +/-3 % tolerance of the set scale value

• Total width [mm]: 69 mm
• Total height [mm]: 52 mm
• Total length [mm]: 960 mm
• Nominal width [mm]: 69 mm
• Nominal height [mm]: 52 mm
• Nominal length [mm]: 960 mm
• Net weight [kg]: 4,184 kg
• Distance housing – square drive: 34,5 mm
• Drive type/drive: Push-through square with pin
• Drive connector square [metric]: 20 mm
• Drive square inch: 3/4 in.
• Number of teeth: 36
• Tightening direction: Left and right
• Trigger mechanism: Short path triggering
• Torque (max.) [Nm]: 550 Nm
• Torque (min.) [Nm]: 110 Nm
• Range of application: Assembly Maintenance and repair
• Fixed setting: No
• Calibration length: 853,7 mm
• Width of head 1 [mm]: 69,0 mm
• Head height 1 [mm]: 38 mm
• vernier Nm: 1 Nm
• Precision +/-: +/- 3 %
• Test certificate: DIN EN ISO 6789-2:2017
• Return angle: 10 °
