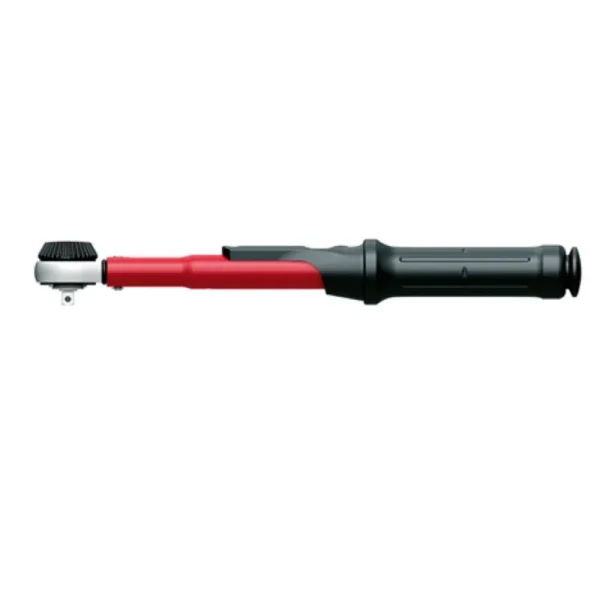

Gedore Torque wrench 1/4 5-25Nm l.285mm 3301214

GEDORE red R48900025 torque wrench 1/4 5-25 Nm 285 mm, 3301214

Use:

• Controlled screw tightening from 5 to 550 N·m
• For controlled bi-directional tightening
• Repetition-accurate and precision-like
• Torque triggering clearly to be heard and felt

Features:

• Adjustable torque wrench with square drive and integrated ratchet-head function
• Square drive with ratchet mechanism
• Torque is set by turning the handle
• The set value is fixed through the lock at the end of the handle
• Easy-to-read scale with magnifying glass for N·m, plus 1/10 scale for precision setting
• Actuation accuracy: +/- 3 % tolerance of the scale set torque

• Total width [mm]: 34 mm
• Total height [mm]: 34 mm
• Total length [mm]: 285 mm
• Nominal width [mm]: 34 mm
• Nominal height [mm]: 34 mm
• Nominal length [mm]: 285 mm
• Distance housing – square drive: 17,5 mm
• Drive type/drive: square socket with knob, serrated
• Drive connector square [metric]: 6,3 mm
• Drive square inch: 1/4 in.
• Number of teeth: 36
• Tightening direction: Left and right
• Trigger mechanism: Short path triggering
• Torque (max.) [Nm]: 25 Nm
• Torque (min.) [Nm]: 5 Nm
• Range of application: Assembly Maintenance and repair
• Fixed setting: No
• Calibration length: 206,5 mm
• Width of head 1 [mm]: 35,0 mm
• Head height 1 [mm]: 25,3 mm
• vernier Nm: 0,1 Nm
• Precision +/-: +/- 3 %
• Test certificate: DIN EN ISO 6789-2:2017
• Return angle: 10 °
