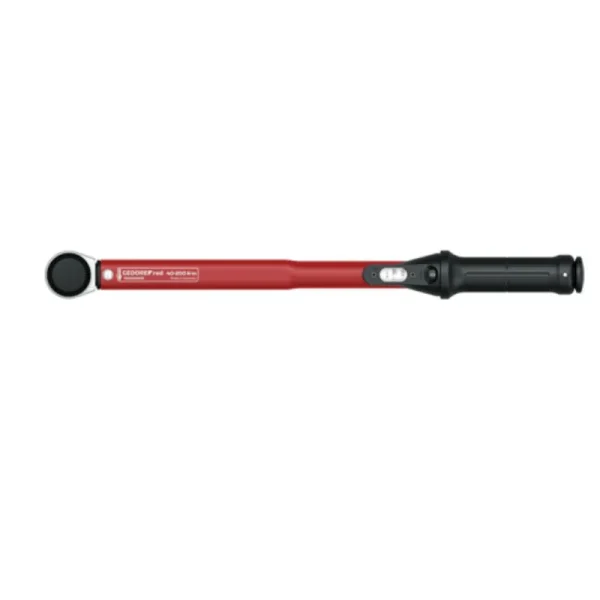

Gedore Torque wrench 1/2 40-200Nm l.485mm 3301217

GEDORE red R68900200 torque wrench 1/2 in. 40-200 N m 485 mm, 3301217

• Adjustable torque wrench with square drive and integrated ratchet function
• Controlled screw tightening from 5 to 25 Nm
• Repetition-accurate and precision-like
• Audible Torque triggering can clearly be heard and felt
• Clockwise and anti-clockwise tightening from switching over the mushroom head/push-through square
• Features:
• Adjustable torque wrench with square drive and integrated ratchet function
• Square drive with ratchet mechanism
• Torque is set by turning the handle
• The set value is fixed through the lock at the end of the handle
• Easy-to-read scale with magnifying glass for Nm, plus 1/10 scale for precision setting
• Tripping accuracy: +/-3 % tolerance of the set scale value

• Total width [mm]: 52 mm
• Total height [mm]: 45 mm
• Total length [mm]: 485 mm
• Nominal width [mm]: 52 mm
• Nominal height [mm]: 45 mm
• Nominal length [mm]: 485 mm
• Net weight [kg]: 1,42 kg
• Distance housing – square drive: 22 mm
• Drive type/drive: square socket with knob, serrated
• Drive connector square [metric]: 12,5 mm
• Drive square inch: 1/2 in.
• Number of teeth: 48
• Tightening direction: Links und Rechts
• Type: square socket with knob, serrated
• Trigger mechanism: Short path triggering
• Torque (max.) [Nm]: 200 Nm
• Torque (min.) [Nm]: 40 Nm
• Range of application: Assembly Maintenance and repair
• Calibration length: 394,2 mm
• Width of head 1 [mm]: 46,0 mm
• Head height 1 [mm]: 35,9 mm
• vernier Nm: 1 Nm
• Precision +/-: +/- 3 %
• Test certificate: DIN EN ISO 6789-2:2017
• Return angle: 7,5 °
