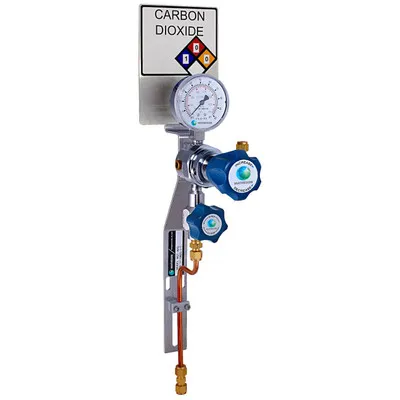

GasTrak™ – Gas Delivery System – Brass

Matheson’s GasTrak Control Systems represent a practical approach to controlling and delivering low or high purity gases for distribution to “point-of-use” locations to meet the operating requirements in today’s laboratory environment. GasTrak Systems provide a cost effective, efficient and safer alternative to maintaining gas cylinders in the laboratory environment as the main source of gas supply. The GasTrak Control System is a simplified design which offers the ability to regulate gas operating pressure, provide gas purification and flow control within a single dedicated “GasTrak Station” for each specific gas being utilized and distributed within the lab. The individual “GasTrak Stations” can be wall mounted at the point-of-use for local instrument source control; or each of the individual “GasTrak Stations” can be combined into a complete system to provide centralized source control of multiple gases being used.

Applications

• Provide the end-user with efficient control and delivery of multiple gases for individual instrument point-of-use or for controlling multiple gas sources within a single centralized system.
• Control the delivery of gases for several instruments, a specific zone (location) within a lab or the entire gas delivery requirements into a laboratory.

Design Features

• Ideal for High (UHP 99.999%+) or Low Purity Gas Delivery
• Control features include: Pressure Regulation, Purification and Flow Control.
• Provides individual gas control/delivery stations for “point-of-use” delivery to analytical instruments.
• Gas specific labeling for each individual control/delivery station.
• Three Operating Pressure Ranges: 0-30 psi / 0-100 psi / 0-200 psi.
• 1/4″ Compression Fitting Standard inlet connection (3/8″ and 1/2″ Optional).
• 1/4″ Compression Fitting outlet connection.
• Design allows convenient access to all components.
• Compact design is cost effective to implement.

Materials of Construction

• Regulator: Chrome Plated Brass Barstock
• Valve: Nickel Plated Brass Barstock
• Gauge: Chrome Plated Brass
• Fittings: Brass
• Tubing: Copper
• Regulator Seat: Teflon
• Valve Seat: Kel-F

Specifications

• Maximum Inlet Pressure: 3000 psi (20,700 kPa)
• Flow Capacity (Cv): 0.08
• Operating Temperature: -15°F to 140°F (-26°C to 60°C)

	Wall Mounting Kits
	Wall Mounting Kit (1 GasTrak) This is mounting kit for one GasTrak. The kit includes two 12″ long pieces of Aluminum U-channel and four sets of nuts and bolts to secure a GasTrak system to the U-channel. This kit does not include the hardware to mount the U-channel to a wall.
	Wall Mounting Kit (2 GasTraks) This is mounting kit for two GasTraks. The kit includes two 18″ long pieces of Aluminum U-channel and four sets of nuts and bolts to secure two GasTrak systems to the U-channel. This kit does not include the hardware to mount the U-channel to a wall.
	Wall Mounting Kit (3 GasTraks) This is mounting kit for three GasTraks. The kit includes two 24″ long pieces of Aluminum U-channel and four sets of nuts and bolts to secure three GasTrak systems to the U-channel. This kit does not include the hardware to mount the U-channel to a wall.
	Wall Mounting Kit (4-5 GasTraks) This is mounting kit for four or five GasTraks. The kit includes two 36″ long pieces of Aluminum U-channel and ten sets of nuts and bolts to secure for to five GasTrak systems to the U-channel. This kit does not include the hardware to mount the U-channel to a wall.

Flow Curves
