NOTE: See the to check hole diameters for your specific flange.

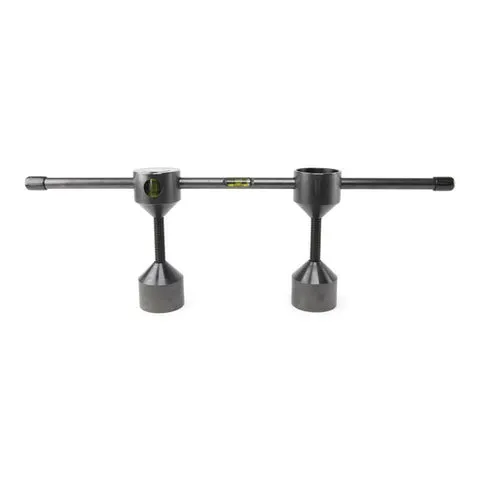

38240-T (threaded) – in protective carrying case with knurled nuts will fit flanges with holes from 1/2″ to 1-7/16″ diameter.
38240-TL (threaded large) – in sturdy cardboard box is the largest model. Fits flanges with holes 1/2″ to 1-15/16″ in diameter.
Learn How to Use the Flange Aligners
Flange Wizard Aligners are self contained with built-in levels to allow for proper alignment of the top two holes of a flange, as well as the vertical face.
Allows welder to align and tack weld flange without fear of knocking off traditional levels.
All models of the Pipe Aligner will two-hole (make 2 holes of the flange horizontally level with the ground) and vertically level the face of the flange in one easy step.
Pins have double lead threads for fast set-up.
Built in levels are easily replaceable if broke.
The Pipe Flange Aligner saves valuable fit-up time, in most cases it cuts fit-up time in half.
All models are machined from steel to make a very sturdy and lasting tool.
