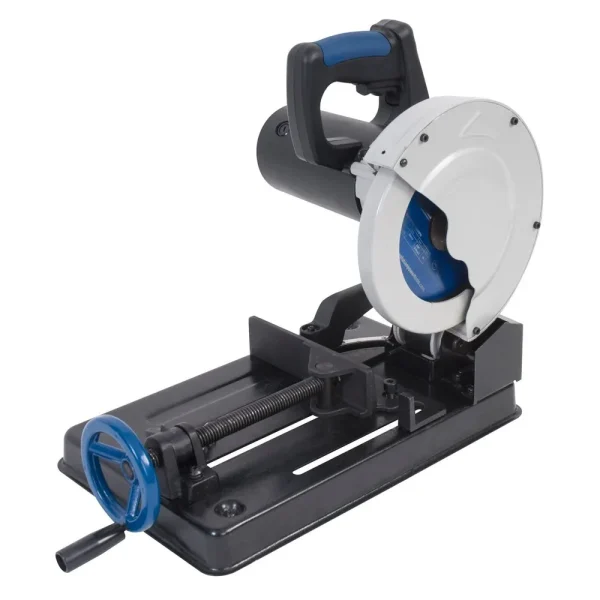

Evolution 7.25 Inch Steel Cutting Chop Saw

EVOSAW185 7-1/4-in. Steel Cutting Chop Saw

• No Heat, No Burrs & Virtually No Sparks
• No Coolant Required
• Pressed Steel Base
• 10A Powerful High Torque Motor
• 2 x 4-in. Cross Cut Capacity
• 2 x 2-in. Square Tube Capacity
• 2-in. Ø Round Tube Capacity
• 3 Years Limited Warranty
• Quick Release 0° – 45° Adjustable Vise

QUICKER, SAFER, MORE ACCURATE & ECONOMICAL THAN AN ABRASIVE SAW!

The EVOSAW185 easily cuts mild steel without heat or burrs and virtually no sparks. The quick release adjustable vise allows for fast and accurate angle cuts from 0-45˚. Ideal for cutting steel plate, square tube, angle iron, pipe, rebar, copper pipe, conduit and steel studs.

7-1/4-in. specialty blades are available for cutting thin steel, stainless steel, aluminum, wood & masonry.

Motor (230-240V ~ 50 Hz): 10A (1250W)
Speed No Load: 4200 rpm (4500 min-1)
Weight (Net): 23 lb (10.4 kg)
Cable Length: 6 – 9/16 ft (2m)

CUTTING CAPACITIES

Mild Steel Plate (Max Thickness): 1/4-in. (6mm)
Mild Steel Box Section (Max Wall Thickness): 1/8-in. (3mm)
Square Tube (at 90°): 2-in. (50mm2)
Square Tube (at 45°): 2-in. (50mm2)
Rectangle (at 90°): 2 x 4-in. (50 x 100mm)
Rectangle (at 45°): 2 x 2-in. (50 x 50mm)
Round Tube (at 90°): Ø 2-in. (Ø 50mm)
Round Tube (at 45°): Ø 2-in.( Ø 50mm)

BLADE DIMENSIONS

Diameter: 7-1/4-in. (185mm)
Blade Type Steel: Blade
Max. Blade Speed: 5800 rpm (5800 min-1)
Bore Diameter: .7874 (20mm)
Number of Teeth: 40
Kerf: .078( 2mm)

NOISE AND VIBRATION DATA

Sound Pressure LPA (Under Load): 93dB(A) K=2dB(A)
Sound Power Level LWA (Under Load): 106dB(A) K=2dB(A)
Vibration Level (Under Load): 4.5 m/s2 K=1.5 m/s2
