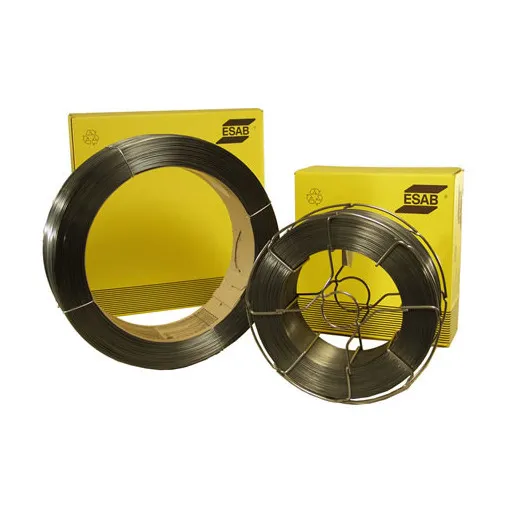

ESAB Coreweld C6 ECO Metal Core Welding Wire, 1/16″, 33 lb Coil | 243411345

Coreweld C6 ECO is a low manganese emissions, high efficiency, metal cored wire developed in response to new EPA* regulations and guidelines from ACGIH (American Conference of Government Industrial Hygienists) for Manganese fume exposure limits. With all the same enhanced features of ESAB’s standard Coreweld C6, Coreweld C6 ECO has more than 50 percent lower manganese content and is designed to provide excellent operating qualities while significantly reducing the manganese levels in the welding fumes when compared to standard metal-cored electrodes of the same classification. ESAB’s optimized formulation aids users in their efforts to reduce exposure to manganese in the welding environment while providing good mechanical properties and low weld metal diffusible hydrogen levels. Coreweld C6 ECO offers the same enhanced features of ESAB’s standard Coreweld C6 with welder-friendly operating characteristics, including consistent arc stability, very low spatter, good bead shape and minimal clean-up in an easy-to-use wire. Its low diffusible hydrogen level helps avoid hydrogen-induced cold cracking in the welding of high strength steel. Combining the Coreweld C6 ECO low manganese formula with argon-based shielding gases and GMAW power supplies allows users to aggressively reduce the manganese concentration in welding fume while achieving the proven performance expected from ESAB, Coreweld C6 ECO is well suited for both hand held and robotic or automated applications in the automotive industry, as well as for civil construction, mobile and heavy equipment, shipbuilding, rail car manufacturing, and general fabrication. Typical Diffusible Hydrogen: 4 ml/100g of deposited weld metal (with 75% Ar/25% CO2) *EPA 40CFR Part 63 Subpart XXXXXX;1.0% Mn, 0.1% Ni, 0.1% Cr, 0.1% Cd and 0.1% Pb, by total weight of the electrode.

Features and Benefits

• ESAB pioneered the development of gas-shielded flux-cored welding (FCAW) in 1957. Today, ESAB offers the broadest variety of mild steel and low alloy flux-cored wires available anywhere in the world.
• ESAB cored wires offer flat welds with deep penetration and wetting into plate, with high deposition rates and efficiencies. This dramatically reduces weld time, increasing productivity.
• Flux-cored welding can be up to three times more productive than Stick and up to 2.5 times more productive than MIG. FCAW also offers productive positional welding and low diffusible hydrogen levels (H5) when required.
• ESAB Coreweld metal-cored wires were developed to meet the needs of demanding applications, such as structural steel construction, heavy equipment, transportation, bridges, petrochemical processing, offshore rigs, railcars, shipbuilding, pressure vessels, and general fabrication.
• Utilizing advanced manufacturing processes and specially formulated composite fillers, Coreweld metal-cored wires combine high deposition rates and efficiencies, high travel speeds, excellent penetration, and ease of use. Metal-cored wires also provide excellent arc stability and outstanding penetration and wetting, with superior fusion at the root joint and sidewall. The result is a high-quality weld with minimal slag and spatter, and fewer residual silica islands.
• Metal-cored wires offer several advantages over solid wire. Since metal-cored wires carry the current on the outer sheath, current densities are considerably higher than those found in wires sold, where the current is carried across the entire cross-sectional area. As a result, the metal-cored arc tends to be softer and can bridge gaps easier with reduced tendancy for burn through.
