Availability: 6 in stock

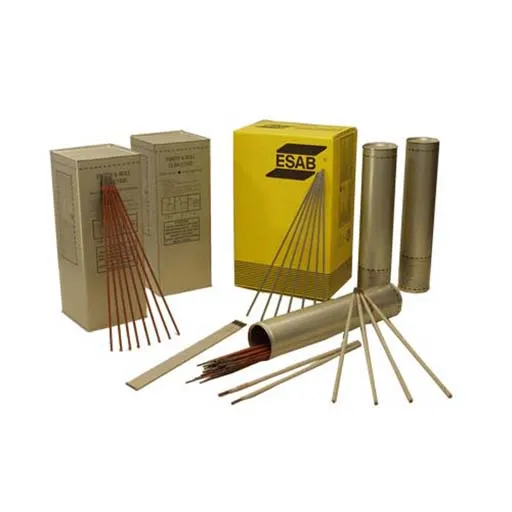

ESAB 10P PLUS Electrode – 3/16 in – 50 lb
Sureweld 10P Plus is a modified version of the standard 10P electrode and can be differentiated by its gray coating. It has also been developed for the pipe welding industry but has a more consistent burn-off and a more forgiving arc burn. This provides a better bead profile and sidewall fusion with lower spatter. Sureweld 10P Plus will maintain the proper keyhole in an open root and will produce X-ray quality joints in the flat, horizontal, overhead, vertical-up, and vertical-down procedures. Sureweld 10P Plus is recommended for welding API grades A25, A, B and X42 pipe and general structural, ship, barge and storage tank fabrication. It may also be used for welding root passes in higher grade pipe in some circumstances.
| Brand | ESAB |
|---|---|
| AWS Classification | E6010 |
| Container Size | 50 lb |
| Container Type | Can |
| Finish/Coating | High cellulose Coated |
| For Welding Position | Flat, Horizontal, Overhead, Vertical Down, Vertical Up |
| Overall Length | 14 in |
| Series | 10P PLUS |
| Tensile Strength | 86.9 ksi |
| Yield Strength | 72.9 ksi |
| MFG | 811004076 |
