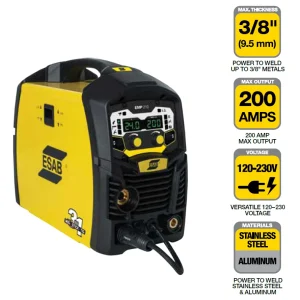

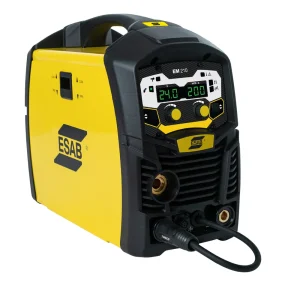

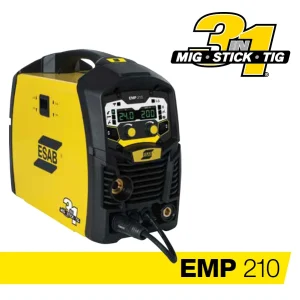

ESAB® EMP 210 inverter-based welding system is ready to tackle steel, stainless and aluminum projects. Featuring professional-grade arc characteristics and full-featured digital controls which enable fine-tuning of the arc performance to deliver superior welds. Weighs just 29 Ibs. and offer dual-voltage 120/230V flexibility. Take this welder wherever work takes you – around the shop, in the field or at home in your garage. Spool gun-ready for MIG aluminum with optional spool gun and optional remote foot control for Lift TIG Welding
Features
Applications
- Automotive
- Agricultural Equipment
- Civil Construction
- Repair and Maintenance
- Light Fabrication
- Automotive Bodies
- HVAC
Accessories
- Tweco Spool Gun 160 A, 12 ft (3.6 m) (required for Al MIG welding) 1027-1397
- Tweco Fusion 180 MIG gun with Velocity consumables, 10 ft (3 m) 1017-1338
- ESAB TIG Foot Control, 15 ft (4.6 m) cable and 8-pin connector W4014450
- TIG Torch 17 V and Accessories,13 ft (4 m) 25/50 mm Dinse W4013802
- TIG Accessory Kit .040″ & 1/16″ (20-115A) 1442-0065
- TIG Accessory Kit 3/32″ & 1/8″ (100-225A) 1442-0066
- Victor Argon Flow Gauge Regulator GF-250-50-580 0781-9411
- Gas Hose, 12.5 ft (3.8 m), Male 5/8-18UNF W4013900
- Power Adapter, 230 V to 120 V, 15 A (2 ft, N6-50R to N5-15P) W4014000
- Basic Utility Cart 1444-0900
- Multi-Process MIG/Flux Cored/Stick/Lift TIG welding system with a 10 – 200A output. Stable Lift TIG arc at low amperage for total control; power to run Stick electrodes up to 5/32-inch
- Digital controls with large easy-to-read LED display enable fast, easy and more accurate operation
- improve welding results with advanced functions typically found on industrial machines: MIG wire run- in, burn-back, variable inductance, 2T/4T trigger control, Lift TIG arc starts, gas pre and post-flow, Stick hot start and arc force control
- Portability and flexibility to weld in a variety of locations weighs 29 Ibs, connect to 120/230V primary power and are compatible with 10 kVa generators
Specifications
- Country of Origin : China
- Input Voltage : 115/230V
- Physical Size : 23 X 18 X 18.5
- Wire Size : .024″ – .035″
- Wire Feed Speed : 80-450 ipm
- Carcinogen : Lead
- Reproductive : Dual Short Form
- Duty Cycle : MIG- 115V: 90A @ 40%, 57A @ 100% | 230 V: 200A @ 15%, 77A @100% | Stick- 115V: 70A @ 40%, 44A @ 100% | 230 V: 170A @ 20%, 66A @ 100% | Lift TIG- 115V: 90A @ 40%, 57A @ 100% | 230V: 200A@15%, 77A @ 100%

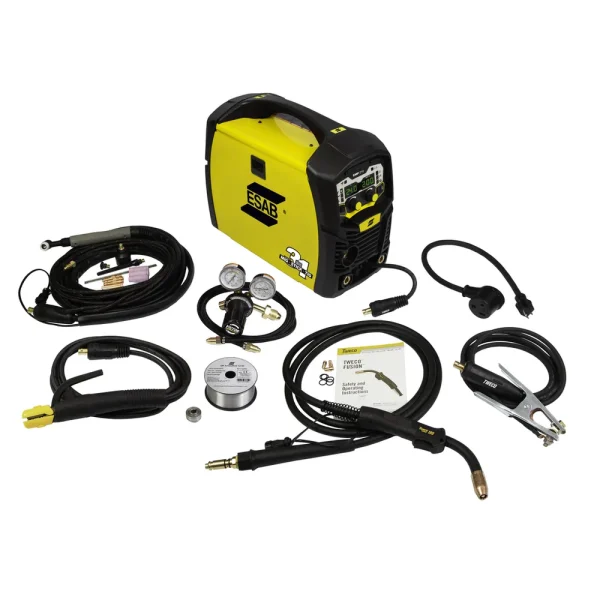

- Includes : Power Source | Tweco Fusion 180A MIG Torch | Premium Ground Clamp | Victor Gas Regulator | Tweco Electrode Holder | Tweco 17V TIG Torch | 2lb OK AristoRod 12.5 Wire Spool
- Process : MIG (GMAW) | DC TIG (GTAW) | Flux Cored (FCAW) | STICK (SMAW)
- Wire Spool Size : 4 & 8 in.
- Output Amps (Max) : 200A
- Amp Range : 10-200 A
- Maximum Plate Thickness : 3/8″
- Electrode Capacity : 5/32″
