Availability: 9 in stock

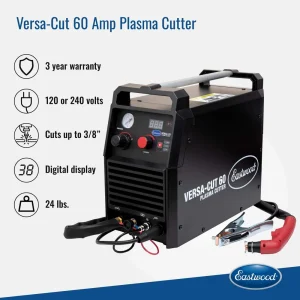

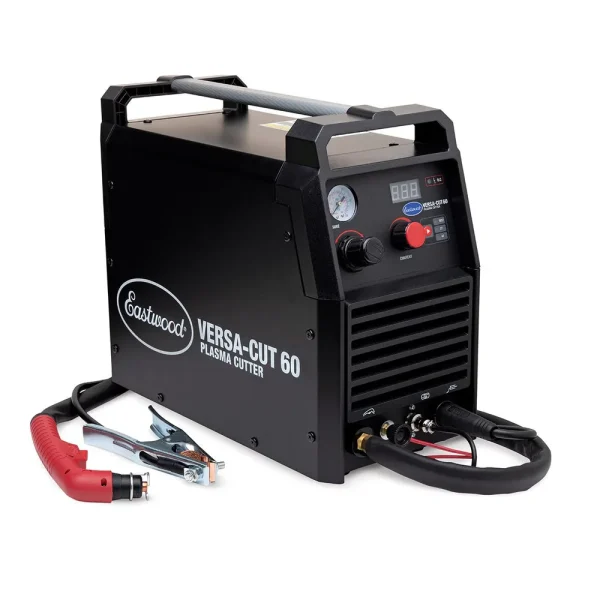

Enjoy professional cutting power on a wide range of metal fabrication projects with the Eastwood Versa-Cut 60 plasma cutter. This portable plasma cutter has an adjustable output up to 60 Amps to cleanly slice through steel from as thin as 24-gauge to as thick as 7/8-in. thick. You can use it on stainless steel and aluminum, too.
The Versa-Cut 60 weighs just 31-lbs, requires only 5-7 CFM of compressed air, and can plug into a 120V or 240V power input, making it an exceptionally versatile and portable unit that you can take anywhere it’s needed.
The included Trafimet CB70 torch has a long 20-ft. cable for maximum maneuverability as you work. It also uses common-style consumables that are available from most local welding supply shops. A 60% duty cycle gives you plenty of up-time to complete long cuts.

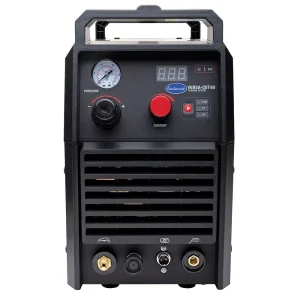

The Versa-Cut 60 uses modern IGBT inverter technology and features 2T/4T modes for smoother long cuts, a breaker switch, and a digital amperage readout for precision. Its pilot arc feature delvers an instant arc when cutting difficult materials like rusted steel or expanded metal.
And it’s all backed up by Eastwood’s 3-year warranty, hassle-free 90-day return policy, and lifetime tech support.
**Due to its high-frequency start feature, we do not recommend using this machine on a CNC plasma table.**
The Eastwood Versa-Cut 60 features:
| Input: | 240 VAC and 120 VAC, 50/60 Hz, 1 Ph |
| Rated Input Current 120V AC: | 39.4 Amps |
| Rated Input Current 240V AC: | 44.5 Amps |
| Output Current Adjustment 120V AC: | 20 – 30 Amps |
| Output Current Adjustment 240V AC: | 20 – 60 Amps Amps |
| Output Voltage on 120V AC: | 88V – 92V |
| Output Voltage on 240V AC: | 88V – 104V |
| Power Cord Receptacle Plug: | NEMA 6-50P |
| Power Cord Length: | 6-ft. |
| Output: | 60 Amps |
| Duty Cycle: on 120V AC: | 60% @ 30 Amps and 100% @ 23 Amps |
| Duty Cycle: on 240V AC: | 60% @ 60 Amps and 100% @ 46 Amps |
| Torch: | Trafimet CB70 |
| Torch Tip: | 0.1mm |
| Max Cut: | 7/8-in. on 240 VAC; 3/16-in. on 120 VAC |
| Air Compressor Requirements: | 5-7 cfm @ 20 – 60 psi |
| Torch Cable Length: | 20-ft. |
| Ground Cable Length and Gauge: | 10-ft. long, 5 gauge wire |
| Cooling Method: | Fan |
| Air Connection Thread: | 1/4-in. NPT |
| Unit Dimensions: | 17.01-in. Long X 14.69-in. Tall X 8.46-in. Wide |
| Unit Weight: | 31 lbs |
