Eastwood Tube Beading Die Set

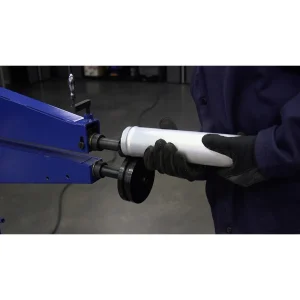

Increase the capability of your motorized bead roller with Tube Beading Dies that are capable of forming up to 18 gauge steel and 16 gauge aluminum. These are designed to fit the Eastwood motorized bead roller as well as other motorized bead rollers with 3/4″ shafts and 2.5″ shaft spacing.

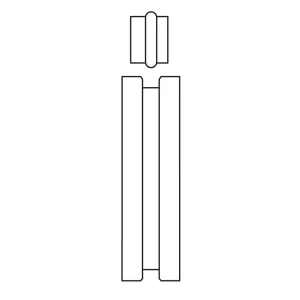

Dies form a bead that is 0.25″ tall and 0.30″ to 0.35″ wide.

These dies are NOT compatible with plate style manual bead rollers that have 22MM Shafts. To see dies for a standard manual bead roller with common 22mm shaft, including units from Eastwood and most other brands,

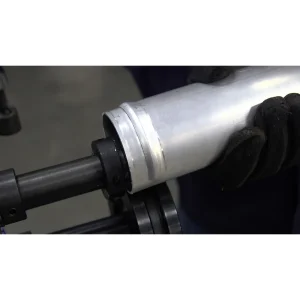

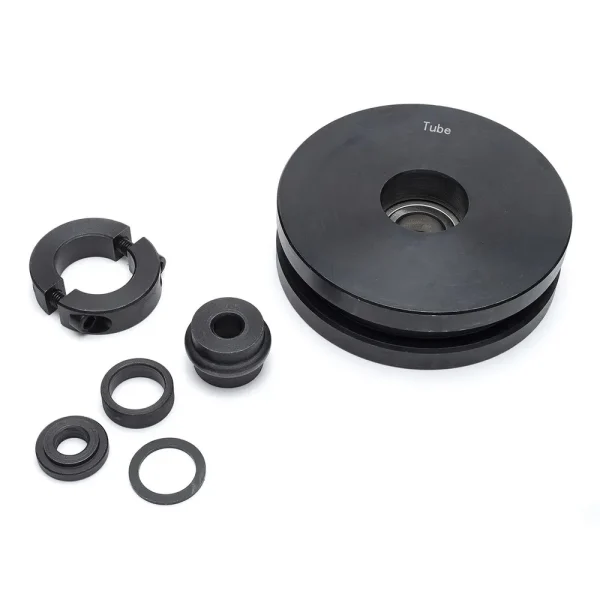

Quickly produces a beaded profile in tubing Female die is on bearings to eliminate slipping. 1.25″ Minimun Tubing ID needed for die clearance Designed for Fabricated Motorized Bead Rollers with 3/4″ Diameter Shafts and 2.5″ Shaft spacing Works with up to 16 Ga Steel Works with up to 14 Ga Aluminum

*Note: Specifications are approximate and subject to change.
