Eastwood Motorized Bead Roller Forming Dies

This kit includes an additional 10 dies to use with any bead roller with a 3/4″ turned end shaft.

The Eastwood Motorized Bead Roller Forming Dies Feature:

• Create offset flanges, contours, deep channels, and style lines
• Use with any 3/4″ shaft bead roller
• Manufactured of CR12 steel with a Rockwell hardness of 35 HRC

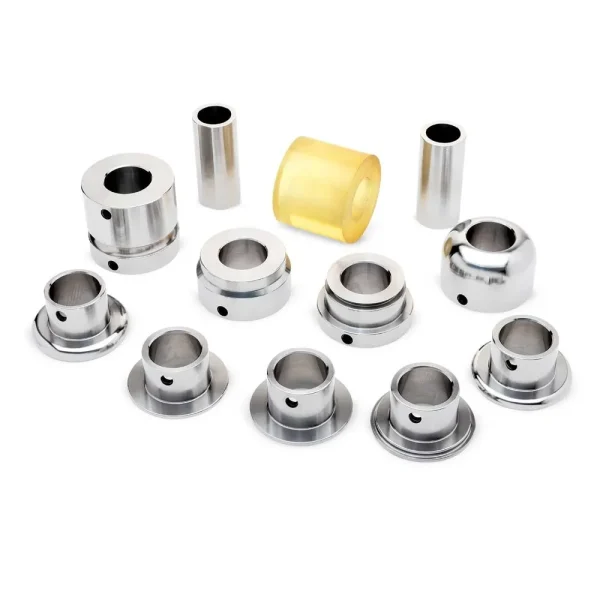

With these additional dies on your bead roller you can create offset flanges, contours, deep channels, and style lines. This kit also includes a polyurethane lower “skate board” wheel, which can be used with a variety of upper dies. The dies included in this kit are inside and outside offset dies, 3/8 and 1/2 inch tipping dies, round and knife edge tipping dies, 180 degree lower die, lower edge forming die and a lower forming die. All are made of CR12 steel with a Rockwell hardness of 35 HRC.

• Material = CR12
• Hardness = 30-40 HRC
• Will fit Bead Rollers with 3/4” shafts and 2-3/4” shaft spacing

*Note: Specifications are approximate and subject to change.
