Availability: 9 in stock
The Eastwood Elite Panel Cutting Saw is designed for creating extremely high accurate cuts in metal on the inside or outside of your scribe line.

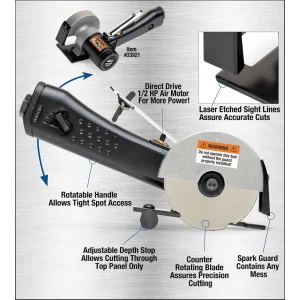

Integral Guard/Base Assembly – The heavy-duty die-cast blade guard integrates a unique indexed handle rotation system, allowing for the handle to rotate around the base up to 120°. This adjustment allows for access in areas where a standard fixed-handle metal saw cannot reach.
Inside-Outside Sight Line – The aluminum base plate is precision laser-etched with blade alignment marks to allow the user to make accurate cuts on the inside or outside of a scribe line. The Panel Saw is also easily capable of starting with a plunge cut, making a scroll cut, or cutting through multi-layered panels.
Quick-set depth gauge – Allows user to accurately set blade depth to cut just top panel not damaging lower panel for repair.

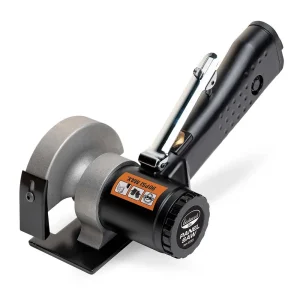

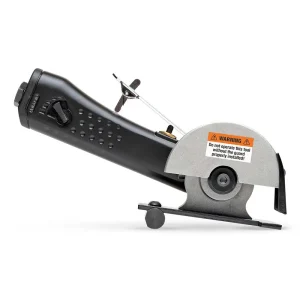

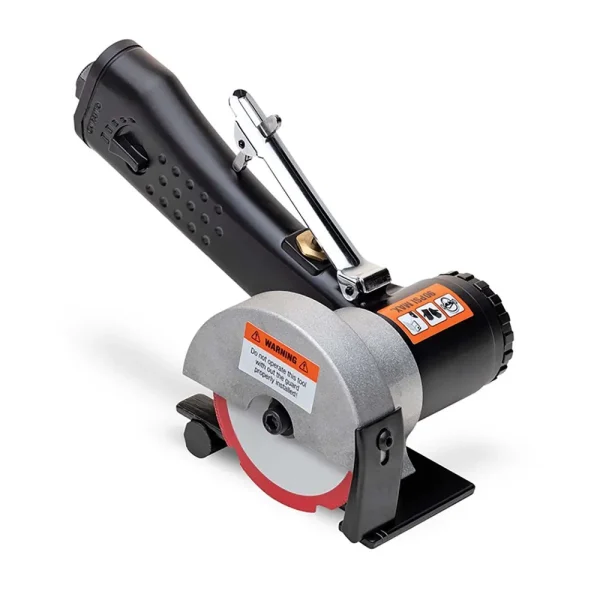

Elite Panel Saw
| Air Consumption: | 4 CFM |
| Operating Air Pressure: | 90 psi |
| Free Speed: | 17,000 RPM |
| Horsepower: | 0.5 |
| Maximum Cutting Depth: | 1/4″ (6.3mm) |
| Cutting Wheel Size: | 3″ (Included) |
| Arbor Size: | 3/8″ (9.5mm) |
| Air Inlet: | 1/4″ FNPT |
| Housing Construction: | Aluminum with Cushion Grip |
| Wheel Guard Construction: | Aluminum Die Cast |
| Base Plate: | 5/32″ (4mm) Steel with Laser Etched Guide Marks |
| Spark Guard Construction: | Steel |
| Speed Adjustment: | Lever Type on Housing |
| Trigger Type: | Paddle with Safety |
| Exhaust: | Rear |
Diamond Blade
| Diameter: | 3″ |
| Thickness: | 0.05” |
| Arbor Size: | 3/8″ |
| Maximum RPM: | 20300 |
