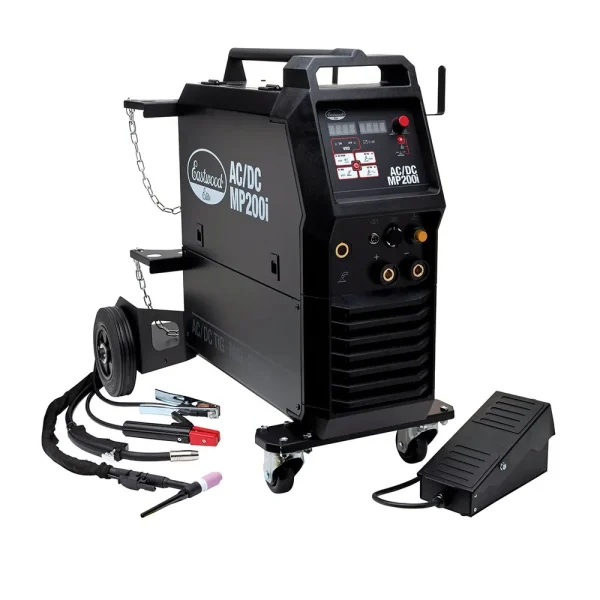

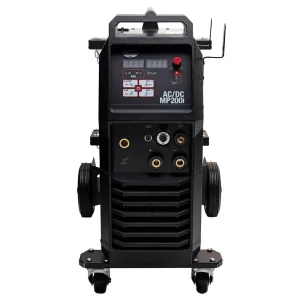

Most multi-process welders are primarily MIG units with the option to TIG-weld steel and, without a foot pedal, they often only let you scratch-start. The Eastwood Elite MP200i AC/DC raises the bar with this TIG-focused MP welder that features high-frequency start and rocker-style foot pedal so you can confidently TIG-weld steel, stainless steel, or aluminum.
This powerful 200-Amp welder can operate on either 120V or 240V power for greater versatility. It takes advantage of an advanced IGBT inverter to reduce weight and bulk. AC/DC square wave technology allows for flawless TIG welds on aluminum. A dynamic cooling fan keeps everything running cool.
Everything you need to weld mild or stainless steel is included – a flex-head WP-17 torch with included gas lens kit for TIG welding, a Tweco-style torch for MIG, and an electrode holder for stick welding. An optional spool gun can be added to allow MIG welding aluminum. The heavy duty internal MIG wire feed motor holds up to 11-lb spools of steel or stainless wire.

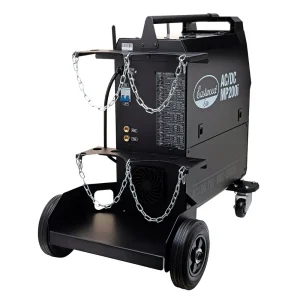

The MP200i AC/DC is separately plumbed for both MIG and TIG welding so you can quickly switch between operations without having to change over gas bottles and regulators. The integrated rolling cart includes storage for two gas bottles as well as side hooks for easy cable storage. And it’s all backed up by Eastwood’s 3-year warranty and lifetime tech support.
Eastwood Elite MP200i AC/DC features:
| Input Voltage (V) | 240 VAC, 50/60 Hz, 1 Phase and 120 VAC 50/60 Hz, 1 Phase |
| No Load Voltage (V) | 68V |
| Rated Input Current (Amps) 240V | MIG = 34.2, TIG = 25.7, ARC = 40.0 |
| Rated Input Current (Amps) 120V | MIG = 20.0, TIG = 20, ARC = 19.2 |
| Output Current Adjustment (Amps) 240V | MIG = 40-200, TIG (DC) = 5-200, TIG (AC) 10-200, ARC = 20-200 |
| Output Current Adjustment (Amps) 120V | MIG = 40-120, TIG (DC) = 5-120, TIG (AC) = 10-120, ARC = 20-120 |
| Duty Cycle 240V | MIG = 40% @ 200 AMPS / 100% @ 130 AMPS, TIG = 50% @ 200 AMPS / 100% @ 140 AMPS, ARC = 40% @ 200 Amps / 100% @130 AMPS |
| Duty Cycle 120V | MIG = 60% @ 80 AMPS / 100% @ 60 AMPS, TIG = 60% @ 100 AMPS / 100% @ 80 AMPS, ARC = 60% @ 60 Amps / 100% @50 AMPS |
| MIG Wire Size | .023 to .035 |
| Power Factor | 0.73 |
| Efficiency (%) | 80% |
| MIG Wire Feed Speed (in/min) | 35 – 590-in. Per Minute |
| Pre Flow Time (seconds) | MIG 0, TIG 0.25 |
| Post Flow Time(seconds) | MIG 1.0, TIG 0 – 30 |
| TIG Welding Starting Method | High Frequency Start |
| Cooling Method | Dynamic Cooling Fan (only runs when required) |
| Gas System | Fully Independent MIG and TIG Systems |
| Gas Flowmeter | Gas Flowmeter, CO2/Argon Compatible |
| Welding Gas Bottle Capacity | Two 40-125 cu ft Cylinders |
| Dimensions | 35.20-in. x 19.88-in. x 30.28-in. |
| Weight | 95.68 lb (43.4 kg) |
| Plug Type | NEMA 6-50P |
| Wire Spool Sizes | 4 or 8-in. wire spools (11 lb max weight) |
The rated Duty Cycle refers to the amount of welding that can be done within an amount of time. The Eastwood Elite MP200i when TIG welding has a Duty Cycle of 50% at the full 200 Amps. It is easiest to look at your welding time in blocks of 10 Minutes and the Duty Cycle being a percentage of that 10 Minutes. If welding at 200 Amps with a 50% Duty Cycle, within a 10 Minute block of time you can weld for 5 Minutes with 5 Minutes of cooling for the welder. If the Duty Cycle is exceeded, the welder will automatically shut off, however the fan will continue running to cool the internal components. When a safe temperature has been reached, the welder will automatically switch the Welder output back on. To increase the Duty Cycle you can turn down the Voltage Output control.
