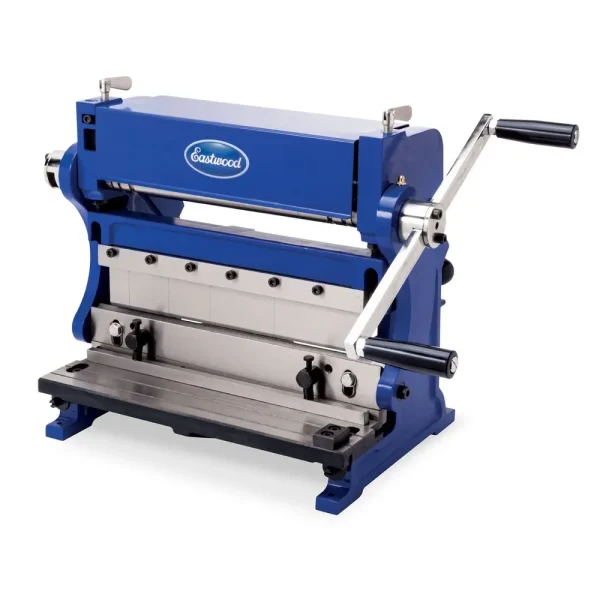

Eastwood Compact 12 Inch 3 in 1 Metal Fabrication Brake Shear and Slip Roll

Sheetmetal Brake, Shear and Slip Roll all in one.

The Eastwood 12 Inch 3 in 1 Brake Shear and Slip Roll Features:

• Compact design meant to save space and time when working with sheet metal
• 5 removable fingers enable you to create boxes and pans up to 12″ wide
• Adjustable stops for both the shear and brake that enable repeatable actions without measuring each time
• Spring loaded hold down enables one handed operation of the shear
• Grease-able fittings for the rotating cam assembly

This machine was designed for one persons ease of use.

Material Length: 12”
Roller Diameter: 1.5″
Maximum Material Working Thickness: (Steel) 20 Gauge
Maximum Material Working Thickness: (Aluminum) 18 Gauge
Maximum Material Working Thickness: (Stainless) 24 Gauge
Finger Lengths: 1″, 2″ (2), 3″ and 4″
Wire Forming Sizes: 3/32″, 1/8″, and 1/4”
Dimensions: 15′ High x 15″ Wide x 11″ Deep
Weight: 97 lbs.
Frame Material: Cast Iron

*Note: Specifications are approximate and subject to change.
