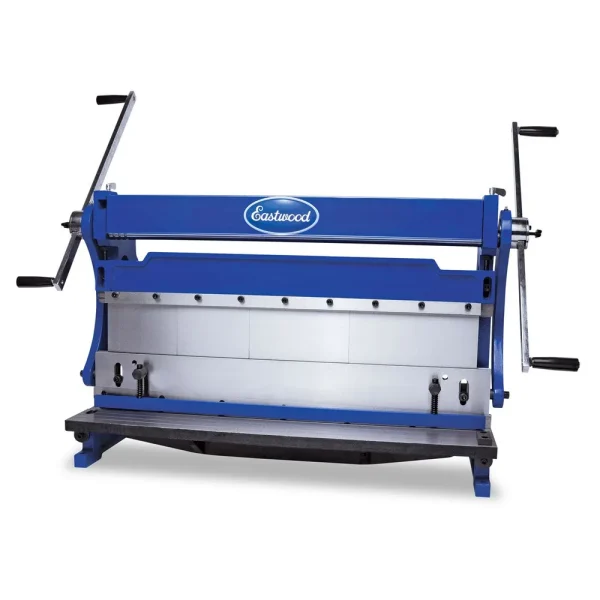

Eastwood 30 Inch 3 in 1 Sheet Metal Shear Brake and Slip Roll

Eastwood Sheet Metal Brake, Shear and Slip Roll are three precision engineered metal working tools all rolled into one.

The Eastwood 3 in 1 30″ Sheet Metal Shear Brake and Slip Roll Features:

• Bends, Rolls and Shears up to 30″ wide
• Works on 20 gauge mild steel 24 gauge stainless and 18 gauge aluminum
• Compact space saving design
• Designed for one person operation
• Create complex shapes such channels, ribs, patch panels, cones, cylinders

Compact design meant to save space and time when working with sheet metal. 6 removable fingers enable you to create boxes and pans up to 30″ wide. Adjustable stops for both the shear and brake that enable repeatable actions without measuring each time. Spring loaded hold down enables one handed operation of the shear. This machine was designed for one persons ease of use. Create complex shapes such channels, ribs,patch panels, cones, cylinders and much more in sheet metal, wire and tubing, all with one convenient bench mount tool.

Material Length: 30”
Roller Diameter: 1.5″
Maximum Material Working Thickness (Steel): 20 Gauge
Maximum Material Working Thickness (Stainless): 24 Gauge
Maximum Material Working Thickness (Aluminum): 18 Gauge
Finger Lengths: 1″, 2″,3″, 6″,8″ and 10″
Wire Forming Sizes: 1/8″, 5/32″, and 3/16”
Deepest Box That Can Be Created: 2.5″
Smallest Cylinder That Can Be Created: 1.5″
Weight: 316 lbs.
Construction Material: Cast Iron
Dimensions (Overall): 39″ x 15.5″ x 23” tall
Dimensions (for the holes needed to bolt down the feet):31-1/8″ x 13.5″

*Note: Specifications are approximate and subject to change.
