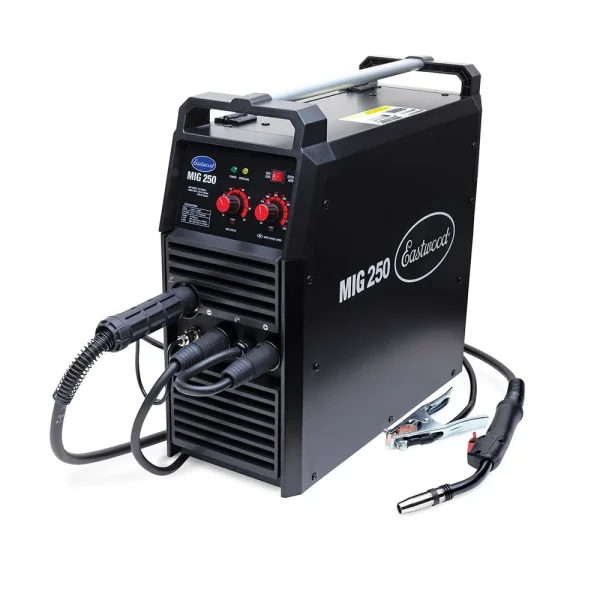

Eastwood 250 Amp MIG Welder

Original price was: $1,049.97.Current price is: $117.94.

Availability: 9 in stock

🚚 Free Shipping over $38
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: 33930
CATEGORY: Welders
Description

Get the power you need for big welding jobs with the Eastwood MIG 250. This advanced 250-Amp MIG welder can be used on a wide range of projects from 20-ga sheet metal up to 1/2-in. steel plates. Infinitely adjustable output lets you set the amperage anywhere between 50- and 250-Amps for greater control.

With the flexibility to run on either 120V or 240V power, you can plug it in virtually anywhere you’re working. And thanks to its lightweight inverter technology, the MIG 250 weighs just 46-lbs – half that of similar welders – so you take it just about anywhere.

Equipped with a long, ergonomically designed Trafimet ERGOPLUS24 torch, an 8-ft. power cable, and a 9.5-ft. ground cable, the MIG 250 makes comfort a top priority as move around your project. A cast aluminum and steel drive motor feeds 0.023-in. to 0.045-in. MIG wire or 0.030 to 0.045-in. flux-core wire smoothly and reliably. The ability to run either 4-in. (2-lbs) or 8-in. (10-lbs) spools of wire gives you additional flexibility, and with the optional MIG welder spool gun installed, you can also weld aluminum.

And it’s all backed up by Eastwood’s 3-year warranty and lifetime tech support.

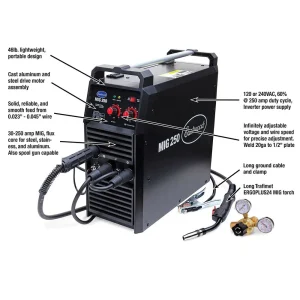

Eastwood MIG 250 Features:

  • Versatile dual-power MIG welder runs on either 120V or 240V
  • Latest IGBT inverter technology makes it lightweight and precise
  • Infinitely adjustable voltage and wire speed controls for precision
  • Cast auminum and steel drive motor assemble delivers smooth, reliable operation
  • Long Trafimet ERGOPLUS24 MIG torch provides superior comfort
  • Welds mild and stainless steel up to 1/2-in thick
  • Optional spool gun allows for welding aluminum
  • Cast aluminum and steel drive motor assembly for smooth operation
  • 60% duty cycle at 250 amps (100% at 194 amps)
  • Backed by Eastwood’s no-hassle return policy and 3-year warranty

Specifications

Rated Electrical Output: 240 VAC: 50/60HZ: 50-250 AMP | 120 VAC: 50/60HZ:50-140 AMP
No Load Voltage: 61 Volt
Rated Input Current: 240 VAC: 46.2 AMP | 120VAC: 20 AMP
Output Current Adjustment: 240 VAC: 50-250 AMP | 120VAC: 50-140 AMP
Power Input At Rated Output: 240 VAC: 43.3 AMP | 120VAC: 20 AMP
Output Voltage: 240 VAC: 16.5V – 26.5V | 120VAC: 16.5V – 21.0V
Duty Cycle: 240 VAC: 60% @ 250 AMP and 100% @ 194 AMP | 120VAC: 60% @ 140 AMP and 100% @ 60 AMP
Overall Dimensions: 20.07-in. x 8.66-in. x 19.69-in.
Weight: 46 LBS.
Power Cord Length: 6-ft.
Wire Diameter: Solid Steel and Stainless Steel .023-0.45-in. (0.6-1.2mm) Flux Core 0.30-0.45-in. (0.8-1.2mm) Aluminum .030-0.35-in. (0.8-.9mm)
Post Flow Time: 1 +- 0.5 seconds
Wire Speed: 240 VAC: 80-530 ipm | 120VAC: 80 – 300 imp
*Note: Specifications are approximate and subject to change.
