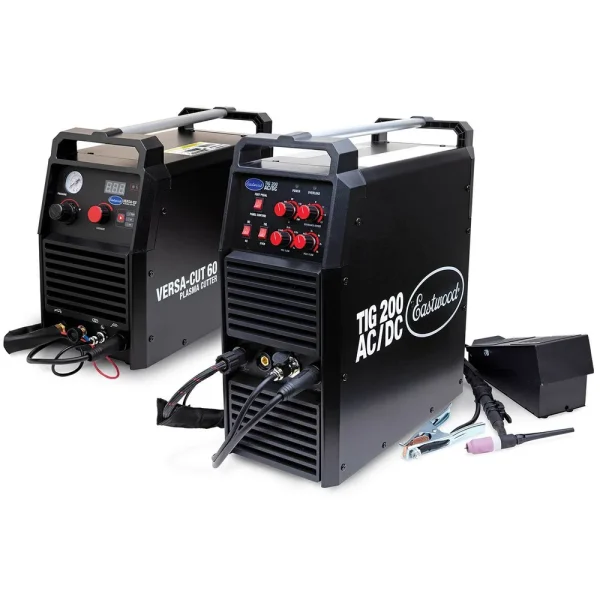

SAVE HUNDREDS with this awesome combo deal. You can finally start serious fabrication at an incredible price! TIG weld steel, stainless and aluminum today and also cut metal up to 7/8″ thick with this amazing deal that combines the popular TIG AC/DC and Versa-Cut 60 Plasma Cutter. Plus both units operate on either 120V or 240V and are backed by the Eastwood 3 Year Warranty.

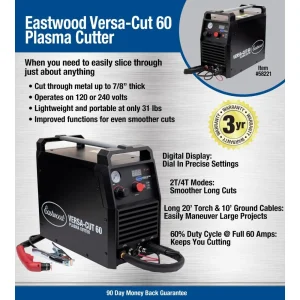

Quickly and precisely carve all types of metal as well as body panels and more with this heavy-duty Eastwood plasma cutter. The adjustable 60-amp output and Trafimet CB70 torch can cut through metal ranging from 24-gauge sheet metal to thick 7/8 inch plates. Use it on mild steel, stainless and aluminum in your shop or at a worksite.
**Note: Due to the High Frequency start feature, we do not recommend using this machine on a CNC plasma table.**
This unit comes with a heavy-duty IGBT inverter, internal moisture separator, long cables and adjustable air pressure regulator assuring long life and accurate cuts. It also includes a self-starting arc which helps in areas where rust and contaminants may be an issue. It has a duty cycle of 60 percent for long continuous cuts. At only 31 pounds, it is light enough to bring to a friend’s shop, a race track or any place metal needs to be cut.

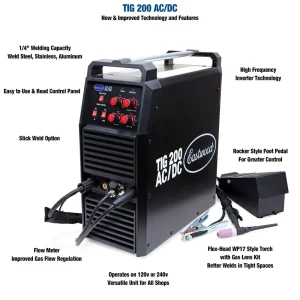

TIG 200 AC/DC Specifications
| Input Voltage: | Single-Phase 120vAC or 240vAC @ 50-60Hz |
| Power Cord Receptacle Plug: | NEMA 6-50P |
| Input Current TIG: | 240v: 23.8 amps | 120v: 20.0 amps |
| Input Current Stick: | 240v: 36.2 amps | 120v: 19.2 amps |
| Output Current Adjustment TIG: | 240v: 10-190 amps |. 120v: 10-145 amps |
| Output Current Adjustment Stick: | 240v: 10-185 amps |. 120v: 10-140 amps |
| Input Voltage TIG: | 240v: 10.4v – 17.6v | 120v: 10.4v – 15.8v |
| Input Voltage Stick: | 240v: 20.4v – 27.4v | 120v: 20.4v – 25.6v |
| Starting Methoda: | High Frequency |
| TIG Welding AC Duty Cycle (%): | 240v 60% at 190 amps and 100% at 143 amps | 120v 60% at 100 amps and 100% at 77 amps |
| STICK Welding Duty Cycle (%): | 240v 60% at 185 amps and 100% at 143 amps | 120v 60% at 60 amps and 100% at 46 amps |
| Post Gas Flow: | 2-8 sec. |
| Pre Gas Flow: | 0.1-1.0 sec. |
| Remote Foot Pedal And Control: | Yes |
| Torch Control: | Finger on/off control/Variable foot pedal |
| Cooling Method: | Fan |
| Overall Dimensions: | 17.8” x 8.4” x 20.20” |
| Weight: | 38 lbs. |
Duty Cycle
The Rated Duty Cycle refers to the amount of welding that can be done within an amount of time. The Eastwood TIG 200 has a duty cycle of 60% at 190 Amps. It is easiest to look at your welding time in blocks of 10 Minutes and the Duty Cycle being a percentage of that 10 Minutes. If welding at 190 Amps with a 60% Duty Cycle, within a 10 Minute block of time you can weld for 6 Minutes with 4 Minutes of cooling for the welder. To increase the Duty Cycle you can turn down the Amperage Output control. Going above 190 Amps will yield a lower duty cycle.
Versa-Cut 60 Specifications
| Input: | 240 VAC and 120 VAC, 50/60 Hz, 1 Ph |
| Rated Input Current 120 VAC: | 39.4 Amps |
| Rated Input Current 240 VAC: | 44.5 Amps |
| Output Current Adjustment 120 VAC: | 20 – 30 Amps |
| Output Current Adjustment 240 VAC: | 20 – 60 Amps Amps |
| Output Voltage on 120 VAC: | 88V – 92V |
| Output Voltage on 240 VAC: | 88V – 104V |
| Power Cord Receptacle Plug: | NEMA 6-50P |
| Power Cord Length: | 6′ |
| Output: | 60 Amps |
| Duty Cycle: on 120 VAC: | 60% @ 30 Amps and 100% @ 23 Amps |
| Duty Cycle: on 240 VAC: | 60% @ 60 Amps and 100% @ 46 Amps |
| Torch: | Trafimet CB70 |
| Torch Tip: | 0.1mm |
| Max Cut: | 7/8″ on 240 VAC; 3/16″ on 120 VAC |
| Air Compressor Requirements: | 5-7 cfm @ 20 – 60 psi |
| Torch Cable Length: | 20′ |
| Ground Cable Length and Gauge: | 10′ long, 5 gauge wire |
| Cooling Method: | Fan |
| Air Connection Thread: | 1/4″ NPT |
| Unit Dimensions: | 17.01″ Long X 14.69″ Tall X 8.46″ Wide |
| Unit Weight: | 31 lbs |
