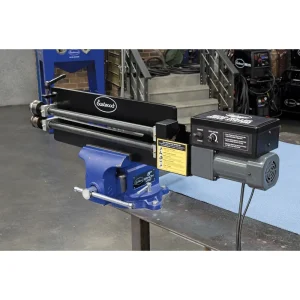

Eastwood 19 Inch Metal Bead Roller and Power Drive System with Dies

Why Buy The Eastwood Bead Roller with a Power Drive?

• Fraction of the cost of a standard motorized bead roller
• Can be operated with just one person
• Add strength and rigidity to metal panels
• Make replacement floor pans, firewalls, trunk floors and more
• Create channels, flanges and a multitude of profiles
• Fabricate decorative custom designs
• Powerful 1/6hp 120v reversible electric motor
• Infinitely variable speed control
• Foot Pedal and speed controller make it easy to keep a consistent speed while forming in a straight line or around bends

Eastwood Bead Roller Features

• Handles up to a 38″ wide work piece
• 4 mandrels included
• Mounts securely in your bench vise
• Forms steel up to 18 gauge and aluminum up to 16 gauge

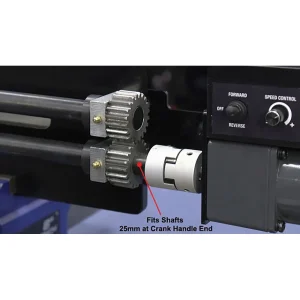

• Industry standard 22mm shafts

Add strength and rigidity to your project’s sheet metal parts

The Eastwood Bead Roller is excellent for producing strengthening ribs in panels used in creating replacement floor pans, firewalls, trunk floors, inner fenders, etc. and also for creating decorative custom designs in door panels, dashes and much more with the range of included beaded Rollers.

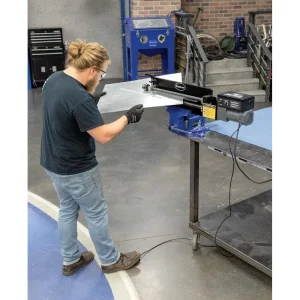

One Man Operation

With the Eastwood Bead Roller Power Drive System, it no longer takes two people to fabricate a metal panel. The Drive System features a 3 Position Toggle Switch with an infinitely variable Speed Controller and Foot Switch. These features provide convenient one-person operate.

Powerful Drive System

The Eastwood Bead Roller Drive System features a powerful 1.65-amp motor with an integral 75:1 gear reduction that enables you to easily forms ½” beads in 18-gauge steel. Unlike other motors on the market, the Eastwood Drive System has a durable industrial style motor, which gives you more power then you need.

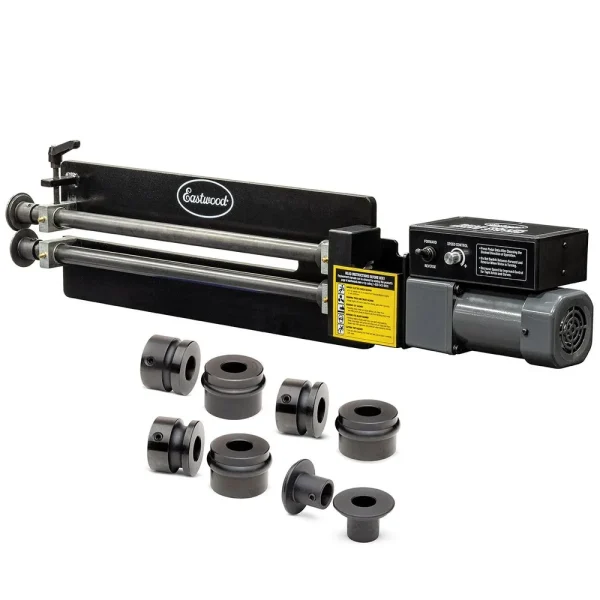

Includes Offset Dies

Also create channels, flanges and a multitude of profiles with the included offset dies. This one set of offset dies can perform the same work as many flange die sets.

Example of 3 different rib sizes create with offset dies

• Maximum material working thickness: Steel = 18 Gauge, Aluminum = 16 Gauge, Stainless = 20 Gauge
• Maximum panel width (working from center) = 38″
• Throat Depth: 19 Inches
• Dimensions: 31″ Width x 11″ High x 5″ Depth
• Weight: 50 lbs.
• Constructed of 1/2″ Solid Steel Plate

21111 Eastwood Power Drive System

Motor: 1/6 HP 1.65 Amp
Gear Reduction: 75:1
Toggle Switch: 3 Position
Infinite Speed Adjustment: 0 – 20 RPM (11.8FPM)
Speed Control Knob: Infinitely Variable
Foot Switch: On/Off
Length: 20.5″
Width: 8.08″
Height: 9.06″
Weight: 18.5 lbs.
