Availability: 10 in stock

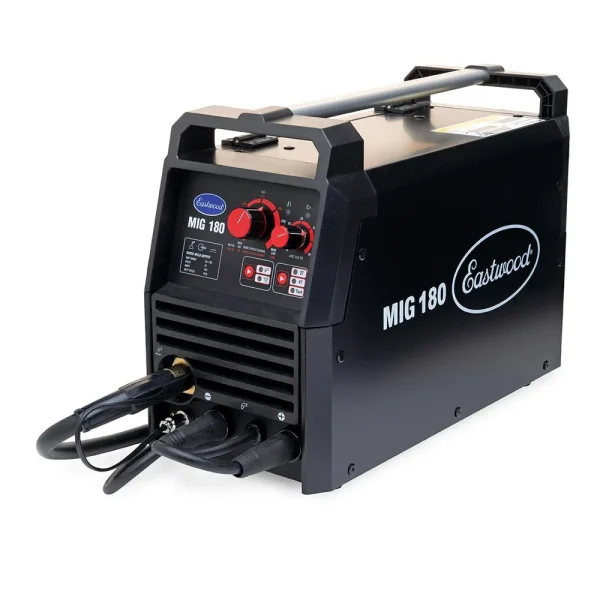

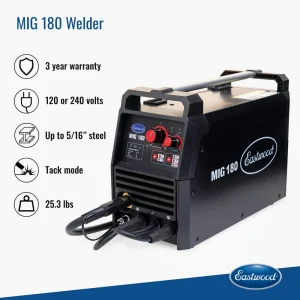

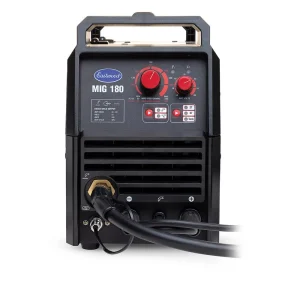

Packed with the latest IGBT inverter technology and quality features, the Eastwood MIG 180 delivers precision welds on sheet metal and other light steel and stainless steel projects up to 5/16-in. thick. This versatile 180-Amp welder runs on either 120V or 240V household power and weighs less than 26-lbs for go-anywhere portability.
Experienced welders as well as beginners will appreciate the MIG 180’s professional-quality features and construction. A tack-weld setting allows for perfectly timed short pulses, perfect for plug welds and spot welds. It also includes 2T and 4T controls for greater precision and comfort, especially for long welds.
The MIG 180 includes a Tweco-style torch that uses commonly available consumables. It doubles as a flux-core welder for gas-free welding and can also weld aluminum with the addition of an optional spool gun (Eastwood Item # 20172). With all these great features, the MIG 180 matches the overall performance of more expensive welders. And it’s all backed up by Eastwood’s 3-year warranty and lifetime tech support.
Eastwood MIG 180 Features:
| Rated Electrical Input: |
240 VAC; 29.6 AMP 120 VAC; 24 AMP |
| Required Breaker Size: | 30 amp |
| Power Voltage: | 1 Phase, 120VAC / 240VAC, 60 Hz |
| Power Cord Receptacle Plug: | NEMA 6-50R |
| Max Voltage at No Load: | 61 V DC |
| Rated Duty Cycle: |
120V: 30% @ 90 Amps 120V: 60% @ 65 Amps 120V: 100% @ 50 Amps 240V: 30% @ 180 Amps 240V: 60% @ 130 Amps 240V: 100% @ 100 Amps |
| Torch Consumables: | Tweco style nozzle and contact tips |
| Wire Feed Rate (IPM/Inches Per Minute): |
120V: 80 – 280 IPM 240V: 80 – 551 IPM |
| Wire Sizes: | 0.023-in. (0.6mm) – 0.035-in. (0.9mm) mig wire
0.030-in. (0.8mm) – 0.035-in. (0.9mm) flux core wire |
| Welding Wire Spool: | 4-in. and 8-in. spool, up to 11 lbs |
| Maximum Welding Thickness – Steel: | 5/16-in. |
| Output Current Range: |
120V: 30 – 120 Amps 240V: 30 – 180 Amps |
| Weight: | 25.3 lbs (11.5 kg) |
| Overall Dimensions: | 18-in. X 8.5-in. X 13.25-in. |
