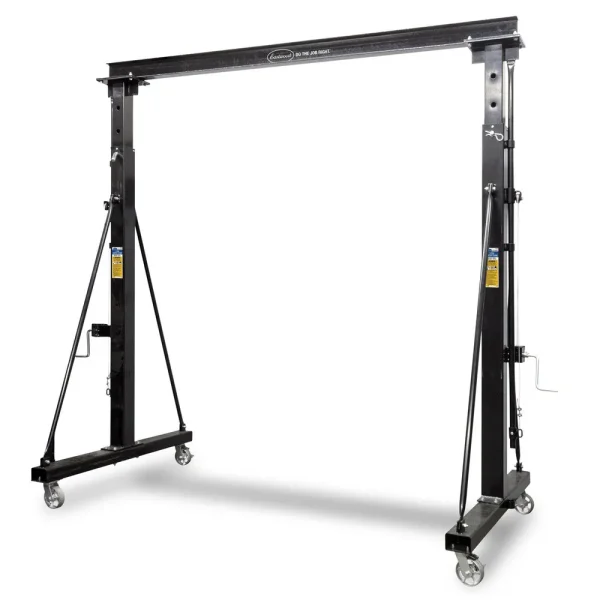

Eastwood 1 Ton Capacity Gantry Crane

The Eastwood Gantry Crane can be used to quickly, easily and safely remove a body from its chassis, remove an engine from a vehicle, to lift a car body to be mounted on a rotisserie and much more.

• All Steel Support Structure

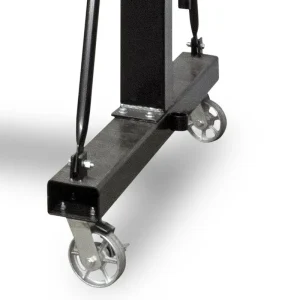

• Large 5″ Swivel Casters
• Can Support Up To 2000 lbs.
• Portable For Easy Storage

The Eastwood Gantry Crane features a heavy, all steel support structure and 5” swivel casters that can support up to a total loaded weight of 2000 lbs. [908kg.], yet is completely portable for rolling to the job and between project storage. A generous 93” [2.36m] span will accommodate large vehicles and projects.

Max. Weight Capacity: 2000lb [908kg] Overall Height (“I”-Beam at lowest position): 99” [2.5m] Overall Extended Height (“I”-Beam at highest position): 147.5” [3.75m] Minimum Vertical Clearance (“I”-Beam at lowest position): 94” [2.38m] Maximum Vertical Clearance (“I”-Beam at highest position): 142.5” [3.61m] Overall Width: 128” [3.25m] Clearance Between Posts: 93-11/16” [2.36m] “I”-Beam Dimensions: 3” W x 5” H (76.2 x 127mm) Assembled Gantry Crane Weight: 550 lbs. [250kg.]

*Note: Specifications are approximate and subject to change.
