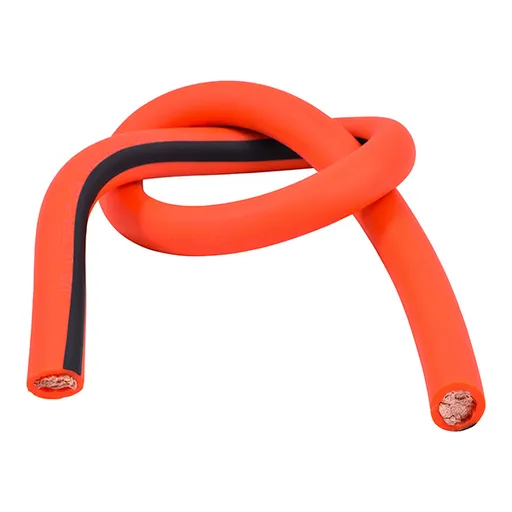

Direct Wire & Cable Ultra-Flex Welding Cable, #2, Orange 250′ | 2UF-ORG-250

Direct’s Ultra-Flex commercial welding cable has been completely re-engineered with improved stranding and jacketing for superior flexibility and ease-of-movement within high-flex applications, including pipelines, robotics, and constrained areas. Ultra-Flex meets SAE J1127 standards, is RoHS compliant, and manufactured in the USA.

• Rope-lay, bunch-stranded, ultra-flexible 34 or 36 AWG SAE copper conductor
• Jacketed with TPE compound
• Signature vibrant orange jacket with deep black striping

Specifications

• Conductors Rope-lay, bunch-stranded, ultra flexible 34 or 36 AWG SAE copper conductor
• Voltage Rating 600 V
• Insulation & Jacket Jacketed with TPE compound
• Resistance Properties Resistant to battery acid, diesel fuel, engine coolant, engine oil, ethanol, extreme temperatures, flame, gasoline, power-steering fluid, and transmission fluid
• Temperature Range -50°C (-58°F) to 105°C (221°F)

Industry Approvals

• SAE J1127 Compliant
• NEC Article 630 (Electric Welders)
• REACH, RoHS, CMRT, and Prop 65 Compliant

Configuration

• Cable Size: #2
• Stranding Gauge: 36
• Conductor Stranding: 2,548
• Insulation Thickness: .060
• Outside Diameter: .428
• Cable Weight (per 1,000′): 240
