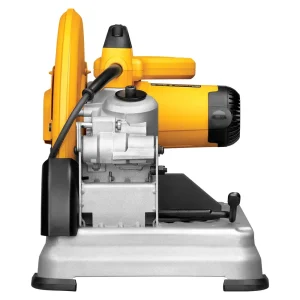

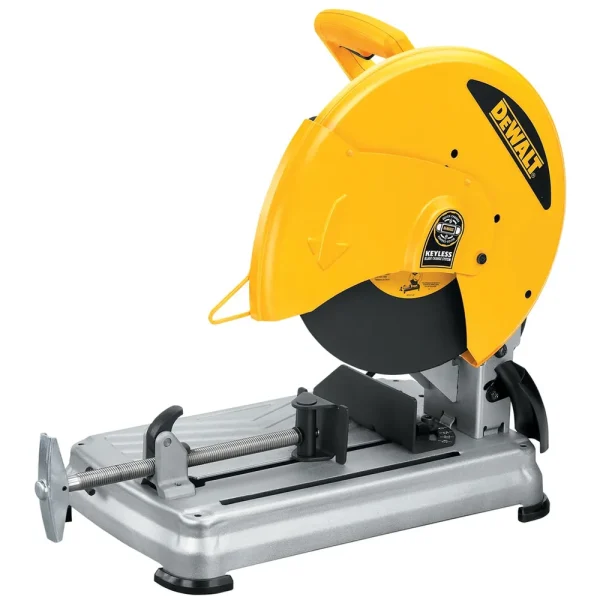

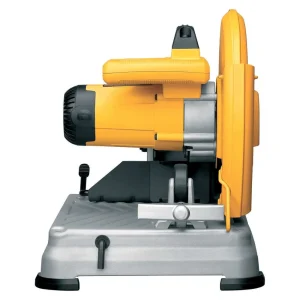

The D28715 14-inch Cut Off Saw with QUIK-CHANGE Keyless Blade Change System is powered by a 15-amp motor for high performance without overheating. The chop saw for metal cutting features two tool-free systems: Quik-Change blade change system and Quick-Fence 45-degree adjustable fence reduces downtime with fast and accurate cuts.
Features
- Powerful 15 amp/5.5 HP (maximum motor HP) motor provides more overload capacity, increasing performance and durability
- QUIK-CHANGE keyless blade change system increases productivity by providing the user the ability to change wheels without a wrench
- Exclusive QUICK-FENCE is a 45-degree, adjustable fence designed for fast and accurate angle cuts without using a wrench
- QUICK-LOCK vise allows for fast clamping on different size materials to increase productivity
- Ergonomically designed “D” handle provides a more comfortable hand position, reducing fatigue and increasing productivity
- Extra wide solid steel base provides increased stability when cutting longer material. The four pre-drilled holes in the base allow easy bolt down to any work bench. The solid steel base also allows user to weld jigs or stops directly to the base.
- Heavy-duty, lock-down pin allows head of the saw to be locked in the carrying position without the use of a chain
- Heavy-duty compression spring provides smooth movement and greater durability than torsion springs
- Spindle lock allows user to make wheel changes quickly and easily, saving time and money
- Large cutting capacity (5″ round / 4-1/2″ x 6-1/2″ rectangle) provides the ability to cut a wide variety of materials
Specifications
- Country of Origin : Mexico
- Length : 22.68 in
- Width : 14.67 in
- Height : 16.5 in
- Weight : 39 lbs
- Power Source : Electric
- Cordless Vs. Corded : Corded
- Voltage : 110 V V
- Battery Included : No
- Battery Test Summary : DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,10.pdf
- Amperage : 15
- Battery Required : Yes
- Cord Length : 6 Ft
- Prop 65 Generic Warning : Yes
- Warranty : 3LW1YS90D
- Certifications Or Listings : CSA Listed
- California Prop 65 Warning Label : http://images.salsify.com/image/upload/s–GK8MnSRs–/aq37mya9pqnhhhehoftu.pdf
- Claims Needed : No
- Arbor Size : 1 in
- Blade Diameter : 14 in In.
- Cuts Into : Metal
- Dust Collection Component : None
- Individual Vs. Set (Syndigo) : INDIVIDUAL
- Maximum Speed : 4000 RPM Rpm
- Table Length : 21 In
- Table Width : 13 In
- Product Finish : Black/Yellow
- Product Material Group : METAL
- Product Primary Material : Steel and Metal
