Availability: 5 in stock

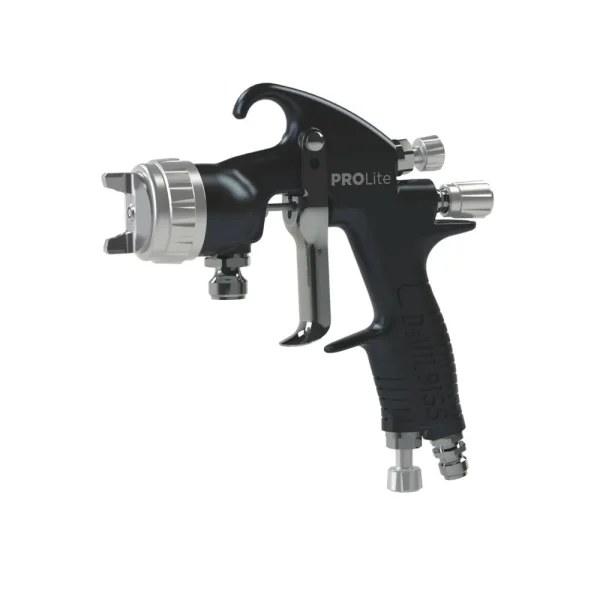

Perfect for any climate and paint, the DeVilbiss PROLite spray gun delivers exceptional performance and color match capabilities for today’s automotive refinish coatings that can be difficult to atomize, such as low VOC, high solids, pearls or metallic materials.
This PROLite performance is achieved utilizing high-capacity air passages and a linear air valve to provide unrestricted, even flow of compressed air through the gun body, enabling the precisionengineered air caps to produce superior atomization with consistent droplet distribution throughout the entire spray pattern.
PROLite is precision built using the highest quality materials for a longer working life. The forged aluminum body features QuickClean
coating with non-stick properties that reduce clean up time. The high-grade stainless steel fluid nozzles and needles, plus nickel plated brass air caps all contribute to a gun that will last in the most extreme professional spray environments. When routine maintenance is needed, the easy-to-maintain design ensures minimum production downtime. In approval testing with paint company technicians over the last decade, the PROLite has consistently met the highest color match standards, ensuring that you get the job done right — the first time and every time.
FEATURES & BENEFITS
coating and a removable air baffle for a longer working life| Air Cap: | TE40 |
| Needle/Nozzle: | 1.2 |
| Material Feed: | PRESSURE |
| Weight (gun only): | 500g |
| Gun Body: | Anodized QuickClean Aluminum |
| Air Cap: | Plated Brass |
| Air Cap Retaining Ring & Knobs: | Clear Anodized Aluminum |
| Fluid Nozzle: | Stainless Steel |
| Fluid Needle: | Stainless Steel |
| Air Inlet Thread: | 1/4″ Universal |
| Air Cap | Atomization Type | Applications | Recommended Inlet Pressure (PSI) | Max Air Consumption (SCFM) | Fan Pattern Size (In.) | Nozzle Sizes |
|---|---|---|---|---|---|---|
| TE30 | High Efficiency | Multi-Purpose | 15-29 | 12.7 | 10.5-11.5 | 0.85-1.8mm |
| TE40 | High Efficiency | Multi-Purpose | 29-44 | 12 | 13.0-16.5 | 0.85-1.8mm |
| C797 | Conventional | Multi-Purpose | 29-44 | 14.5 | 13.0-16.5 | 0.85-1.8mm |
| HV40 | HVLP | Multi-Purpose | 17 | 10.5 | 11.0-13.0 | 0.85-1.8mm |
