Availability: 5 in stock

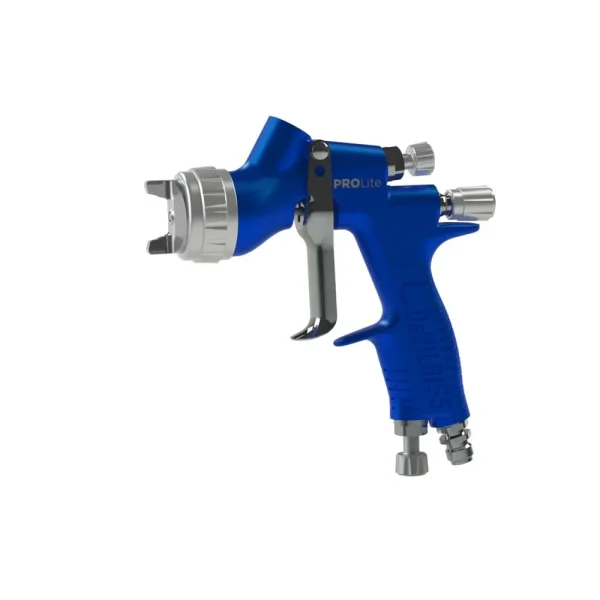

The DeVilbiss PROLite spray gun delivers exceptional performance and color matching capabilities for today’s automotive refinish coatings that can be difficult to atomize, such as low VOC, high solids, pearls or metallic materials.
This PROLite performance is achieved utilizing high-capacity air passages and a linear air valve to provide even and unrestricted flow of compressed air through the gun body, producing superior atomization with consistent droplet distribution throughout the entire spray pattern.
PROLite is precision-built using the highest quality component materials for a longer working life in all professional spray environments. The dropforged aluminum body, anodized finish, high-grade stainless steel fluid nozzles and needles, and nickel plated brass air caps all contribute to a gun that will last in the most extreme environments. When routine maintenance is needed, the PROLite’s easyto-maintain design ensures minimum production downtime. In approval testing with paint company technicians over the last decade, the PROLite has consistently met the highest color match standards to ensure that you get the job done right — the first time and every time.
FEATURES & BENEFITS
| Air Cap: | HV30 |
| Needle/Nozzle: | 1.3, 1.4 |
| Gauge: | HAV-555 |
| Cup Type: | 900ml, ALUMINUM |
| Weight (gun only): | 445g |
| Gun Body: | Anodized Aluminum |
| Air Cap: | Plated Brass |
| Air Cap Retaining Ring & Knobs: | Clear Anodized Aluminum |
| Fluid Nozzle: | Stainless Steel |
| Fluid Needle: | Stainless Steel |
| Air Inlet Thread: | 1/4″ Universal |
| Air Cap | Atomization Type | Applications | Recommended Inlet Pressure (PSI) | Max Air Consumption (SCFM) | Fan Pattern Size (In.) | Nozzle Sizes |
|---|---|---|---|---|---|---|
| TE10 | High Efficiency | Basecoats, Clearcoats | 20-35 | 10.9 | 11.0-12.0 | 1.1-1.5mm |
| TE20 | High Efficiency | Basecoats, Clearcoats | 16-26 | 12 | 11.0-11.5 | 1.1-1.5mm |
| TE25 | High Efficiency | Basecoats, Clearcoats | 22-29 | 12.4 | 10.5-11.0 | 1.1-1.5mm |
| T110 | High Efficiency | Basecoats, Clearcoats | 22-29 | 9.4 | 11.0-12.0 | 1.1-1.5mm |
| HV30 | HVLP | Basecoats, Clearcoats | 14-25 | 15.5 | 11.5-12.5 | 1.1-1.5mm |
