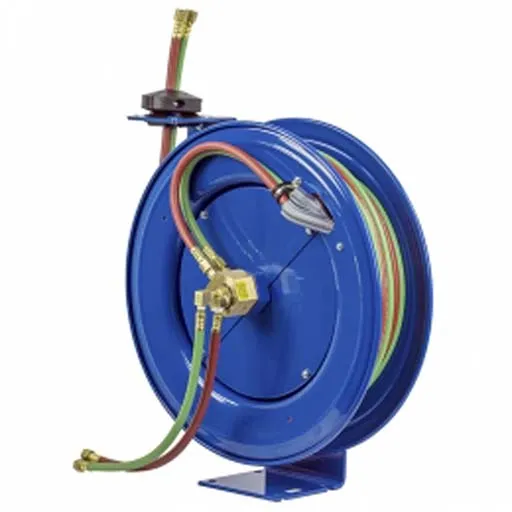

Coxreels SHW Specialty Hose Reel – 75 ft
Coxreels SHW series spring driven welding hose reels is the ideal solution for managing bulky twin line welding hose. The SHW series has a larger chassis and frame than P-W series to accommodate longer lengths of welding hose and Coxreels’ original Super Hub dual axle support system for increased stability during operation, less vibration and greater structural integrity.
Features
External fluid path with 90° full-flow dual ported brass swivel offering both connections from the same side of the reel
Single pedestal reel with space saving design facilitates workplace organization
Rolled edges and ribbed discs provide strength and safety
Enclosed factory tuned and matched cartridge-style spring motor
Non corrosive stainless steel spring, pawl and zinc plated ratchet
Multi-position non-sparking lock ratchet mechanism secures hose at desired length
Welding gas swivel – External 90° full-flow dual ported brass swivel with VITON seals offering both connections from the same side of the reel. No need to remove the reel from its mount
Cartridge motor – Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance
CNC spun discs – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety
1/4 in Steel base – Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub
dual axle support
Multi-position guide arm – Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions
Other features include – long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, oxy-acetylene or “T” grade welding hose, and sturdy permanently lubricated precision bearings
