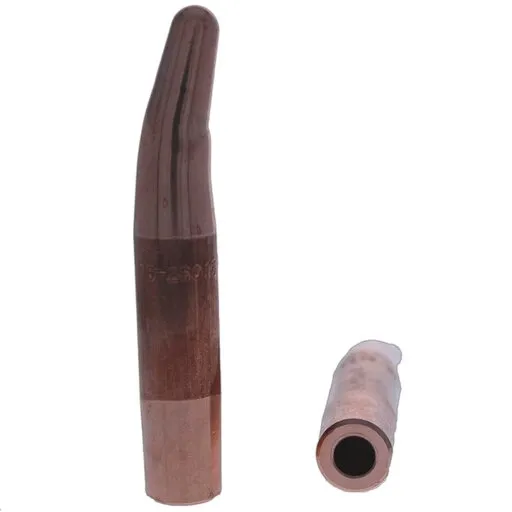

CMW Inc Single Bend Ball Nose Tips, 0.625″ Dia, 3.688″ Len | 16-26015

Single Bend Ball Nose Tips are an economic solution to weld in a tight are area or hard to reach spot such as a flange or corner. The spherical, ball nose design accommodates modest misalignment problems as contact with the workpiece can still be made on the radius during welding.

RMWA Class 2 (C18200) material – a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

• The overall length is 3.688 in
• The outside diameter is 0.625 in
• The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
• The Ball or Spherical nose design accommodates modest misalignment problems as contact with the workpiece can still be made on the radius during welding.
• The weld face is 3/16 Radius in
• The offset is 0.375 in
• The engagement angle is 15 Degrees
