Availability: 9 in stock

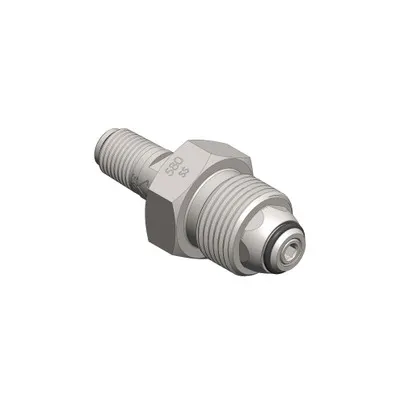

These standard cylinder valve outlet connectors come with a 1/4″ MNPT connection on the other end. A check valve is built into the tailpiece of the connection. Washers are included with CGA fittings that require washers.
• Nipple: 316 stainless steel
• Nut: 303 stainless steel
• O-Ring: Viton
• Cv: 0.32
|
CGA |
Part Number |
Nipple Length (in) |
Max Pressure (PSIG) |
Typical Gases |
|
| 320 | SEQ320CV4SS | 2.50 | 3000 | Carbon Dioxide | |
| 346 | SEQ346CV4SS | 2.63 | 3000 | Breathing Air | |
| 350* | SEQ350CV4SS | 2.63 | 3000 | Hydrogen, Methane, Carbon Monoxide & Many Flammable Gases | |
| 510* | SEQ510CV4SS | 2.63 | 500 | Many Fuel Gases like Propane & Acetylene | |
| 540 | SEQ540CV4SS | 2.63 | 3000 | Oxygen | |
| 580 | SEQ580CV4SS | 2.63 | 3000 | Nitrogen, Helium & Argon | |
| 590* | SEQ590CV4SS | 2.63 | 3000 | Zero Air & Sulfur Hexafluoride | |
| 660 | SEQ660CV4SS | 2.63 | 3000 | Chlorine & Sulfur Dioxide |
*Left-Handed Threads
The above chart may be used for guidance purposes only. Consult your gas supplier to determine the actual CGA connection.
