Availability: 7 in stock

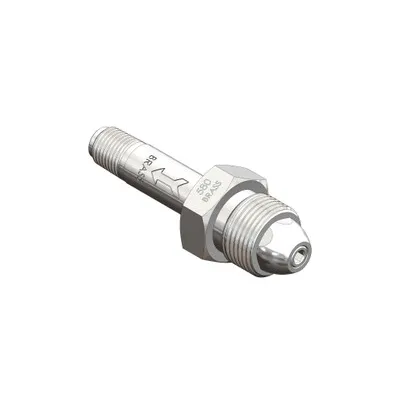

These standard cylinder valve outlet connectors come with a 1/4″ MNPT connection on the other end. A check valve is built into the tailpiece of the connection. Washers are included with CGA fittings that require washers.
• Nipple: Nickel plated brass
• Nut: Nickel plated brass
• O-Ring: Viton
• Cv: 0.32
|
CGA |
Part Number |
Nipple Length (in) |
Max Pressure (PSIG) |
Typical Gases |
|
| 320 | SEQ320CV4BP | 3.00 | 3000 | Carbon Dioxide | |
| 326 | SEQ326CV4BP | 3.00 | 3000 | Nitrous Oxide | |
| 350* | SEQ350CV4BP | 3.00 | 3000 | Hydrogen, Methane, Carbon Monoxide & Many Flammable Gases | |
| 510* | SEQ510CV4BP | 3.50 | 500 | Many Fuel Gases like Propane & Acetylene | |
| 540 | SEQ540CV4BP | 3.00 | 3000 | Oxygen | |
| 580 | SEQ580CV4BP | 3.50 | 3000 | Nitrogen, Helium & Argon | |
| 590* | SEQ590CV4BP | 3.50 | 3000 | Zero Air & Sulfur Hexafluoride |
*Left-Handed Threads
The above chart may be used for guidance purposes only. Consult your gas supplier to determine the actual CGA connection.
