Liquid carbon dioxide is carbon dioxide gas that is highly compressed and cooled to a liquid form. Carbon dioxide exists as a liquid below the critical temperature of 31C and above the triple point with a temperature of -56.6 C and 4.18 bar.
Features
- A colorless and odorless gas that can cause the nose to sting in high concentrations
- Toxic in high concentrations, an asphyxiant (does not support life)
- Slightly corrosive in the presence of moisture
- Heavier than air, carbon dioxide will collect in ducts, drains and low-lying areas
- Highly soluble in water at moderate pressures
Specifications

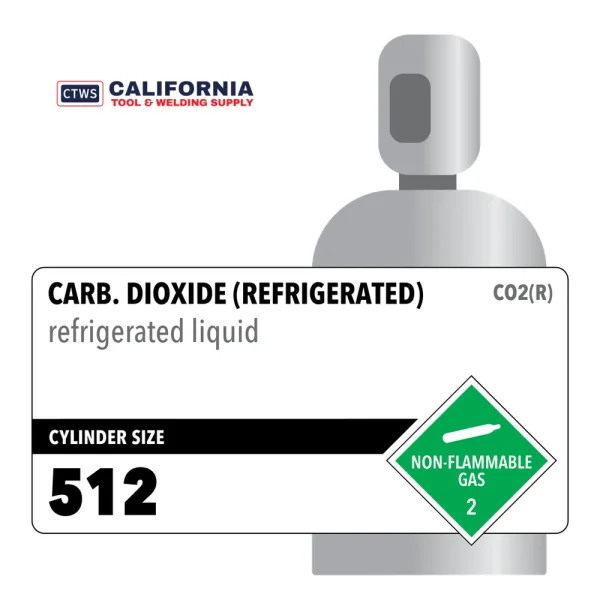

Cylinder
- Connection Valve (CGA) : CGA 320
- Cylinder Size : 512
- Cylinder Volume (lbs, l, or ft3) : 512 lbs
- Cylinder Material : Stainless Steel
Technical
- Gas : Carb. Dioxide (Refrigerated)
- Symbol : CO2(R)
- Chemical Symbol : CO2
- Gas Grade : Beverage
- Molecular Mass : 44.04
- Specific Volume : 8.76 ft3/lb (0.55 m3/kg)
- CAS Number : 124-38-9
Shipping
- Shipping Name : Carb. Dioxide, Refrigerated Liquid
- Hazard Class : 2.2
- UN Number : 2187
- Label : Nonflammable Gas
Safety
- Physical state : Gas
- Appearance : Colorless liquid
- Color : Colorless liquid
- Odor : Odorless
- pH : 3.7 (carbonic acid)
- Melting point : -78.5 °C
- Boiling point : -78.4 °C
- Critical temperature : 31 °C (87.7°F)
- Vapor pressure : 5730 kPa
- Critical pressure : 7375 kPa
- Relative vapor density at 20 °C : .82
- Relative gas density : 1.52
- Solubility : Water: 2000 mg/l Completely soluble
- Log Pow : 0.83
- Oxidizing properties : None
