Availability: 10 in stock

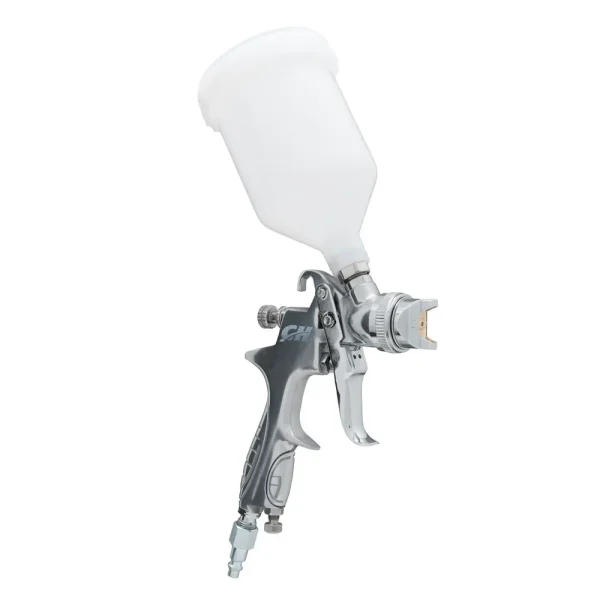

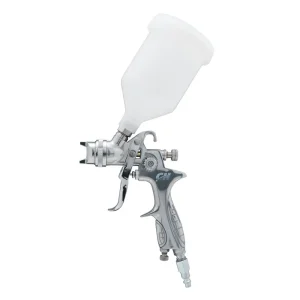

The Campbell Hausfeld general-purpose, gravity-feed HVLP spray gun (DH580000AV) designed to spray all light- to medium-viscosity materials, including primers, enamels, lacquers, basecoat/clear coat systems and polyurethane/urethane top coats. Controls to adjust fluid flow, air flow and spray pattern make it easy to dial in the perfect settings for great results. The 600 mL gravity-feed canister makes cleanup easier and minimizes material waste.
| Air inlet size: | 1/4″ NPS |
| Recommended Hose Size: | 3/8″ |
| Air consumption @ recommended pressure: | avg. 4.0 CFM @ 40 psi |
| Fluid Delivery: | gravity |
| Paint Viscosity: | low-med |
| Fan Pattern: | 1.5-9.0 in |
| Cup Size: | 20 fl. oz. |
| Fluid Nozzle: | 1.4mm |
| Weight: | 2.6 |
| Power Source: | Pneumatic |
| Commercial: | No |
| Cube FT: | 439.75 |
| UL Safety Listing: | No |
| CSA Safety Listing: | No |
| ETL Safety Listing: | No |
| Prop 65: | Yes |
