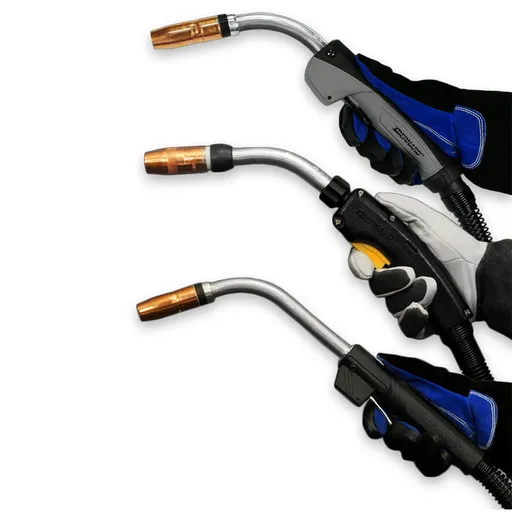

Bernard BTB Air-Cooled MIG Gun 400A, 15′, TOUGH LOCK, 1/16″ Wire, Miller | Q4015MP3IMC

Optimize for Productivity. Standardize for Simplicity

Build your ultimate Bernard® BTB semi-automatic air-cooled MIG gun. Choose from a variety of necks, handles and trigger styles to optimize welder ergonomics and weld access ‒ plus, standardize with a single line of consumables to simplify maintenance and contain costs.

You can count on Bernard BTB semi-automatic air-cooled MIG guns to deliver industrial-grade performance and reliability in the most demanding and abusive environments.

Processes

MIG (GMAW) welding

Duty Cycle Rating

• 200 amp model – 100%: 200 amp with CO2, 60%: 200 amp with mixed gases
• 300 amp model – 100%: 300 amp with CO2, 60%: 300 amp with mixed gases
• 400 amp model – 100%: 400 amp with CO2, 60%: 400 amp with mixed gases
• 500 amp model – 100%: 500 amp with CO2, 60%: 500 amp with mixed gases
• 600 amp model – 100%: 600 amp with CO2, 60%: 600 amp with mixed gases

Cable Length Options – 10, 15, 20 and 25 feet

Wire Size Ranges – 0.023″ (0.6 mm) to 1/8″ (3.2 mm)

Configurations

T Series Straight Handle, Standard Trigger

Fixed Short 60 Degree Neck

TOUGH LOCK HD Contact Tip

Miller Power Pin

QUICK LOAD Liner
