Acetylene is a colorless and tasteless gas with a garlic-like odor. It also the hottest and most efficient of all fuel gases, providing high levels of productivity due to effective, localized heating with a minimum of thermal waste. Acetylene is primarily used for Oxy-Fuel cutting and welding.
Features
- A colorless, flammable gas, with a garlic-like odor, that is dissolved in acetone
- The only fuel gas hot enough to weld steel
- Used for gas welding, cutting, flame heating, flame gouging, flame straightening and flame cleaning
- More efficient, save time and money by switching to acetylene
- Slightly lighter than air and will collect at ceiling level
- High cutting speed and fast cut initiation time due to its unique properties
- Reduced Oxygen use
Specifications

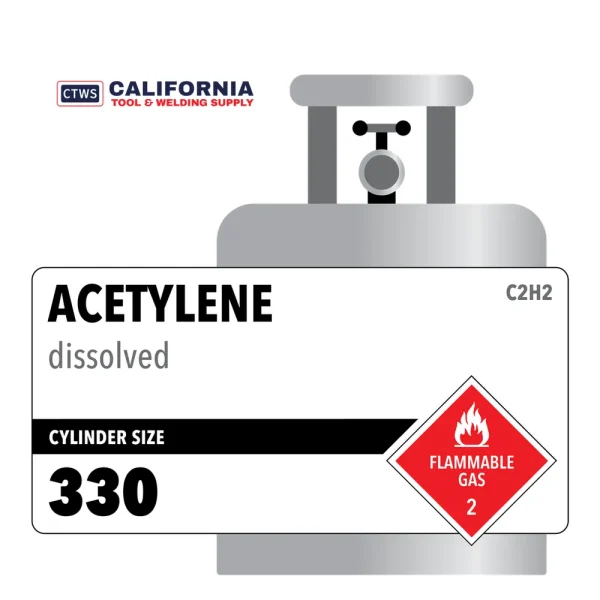

Cylinder
- Connection Valve (CGA) : CGA 510
- Cylinder Size : 330
- Cylinder Volume (lbs, l, or ft3) : 330 ft3
- Cylinder Material : Low Pressure Steel
Technical
- Gas : Acetylene
- Symbol : C2H2
- Purity : 99.6%
- Chemical Symbol : C2H2
- Gas Grade : Atomic Absorption
- Molecular Mass : 26.04 g/mol
- Specific Volume : 14.7 ft3/lb (0.91 m3/kg)
- CAS Number : 74-86-2
Shipping
- Shipping Name : Acetylene, Dissolved
- Hazard Class : 2.1
- UN Number : 1001
- Label : Flammable Gas
Safety
- Appearance : Colorless, odorless gas
- Color : Colorless
- Odor : Garlic like. Poor warning properties at low concentrations
- Melting point : -80.8 °C (-113.4°F)
- Boiling point : -84 °C (-119.2°F)
- Flash point : -17 °C (1.4°F)
- Critical temperature : 36 °C (97°F)
- Auto-ignition temperature : 305 °C (581°F)
- Decomposition temperature : 635 °C (1175°F)
- Flammability (solid, gas) : 2.5 – 100 vol %
- Vapor pressure : 44 bar (623 psig)
- Critical pressure : 61.38 bar (875 psig)
- Density : 0.0012 g/cm_ (at 0 °C)
- Relative gas density : 0.9
- Solubility : Water: 1185 mg/l
- Log Pow : 0.37
- Oxidizing properties : None
