Availability: 8 in stock

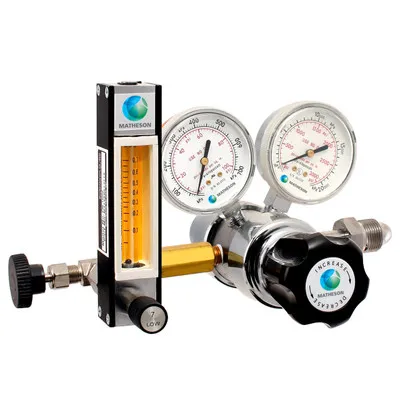

The Model 81 general purpose regulator combined with flowmeters to service applications requiring flow monitoring capabilities.
• Two-stage regulator construction same as Model 81 Series
• Incorporates Matheson FM-1000 Series brass flowmeter
• Permits convenient adjustment of pressure and flow with good resolution
• Manual shut-off and control valves included
• Hose barb connection (3/16″ to 3/8″) on outlet included
• Flowmeter scale is direct read-air
| Part Number* | Flow Range (SLPM) |
Delivery Pressure Gauge |
Cylinder Pressure Gauge |
| SEQ81AFCGA | 0.05-0.7 | 0-100 psi | 0-3000 psi |
| SEQ81BFCGA | 0.2-2.0 | 0-100 psi | 0-3000 psi |
| SEQ81CFCGA | 0.5-5.0 | 0-100 psi | 0-3000 psi |
| SEQ81DFCGA | 1.0-10.0 | 0-100 psi | 0-3000 psi |
| SEQ81EFCGA | 2.5-25.0 | 0-100 psi | 0-3000 psi |
*Note: where CGA is replaced by the actual CGA number. Some CGA limitations may apply.
