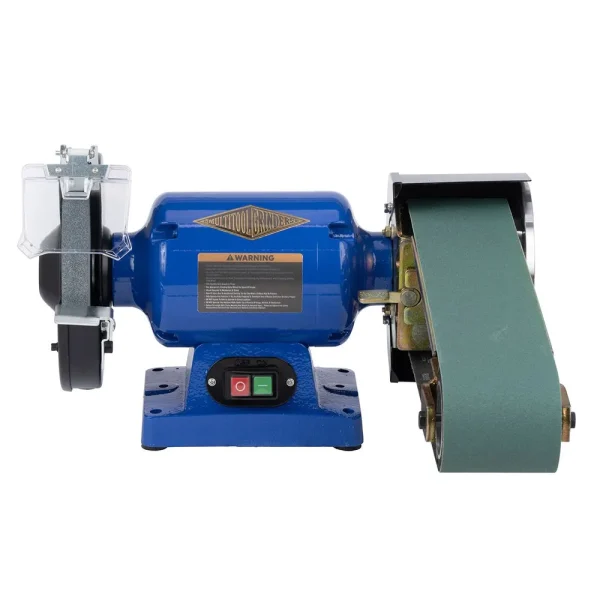

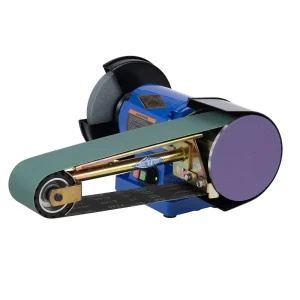

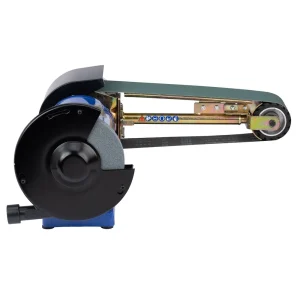

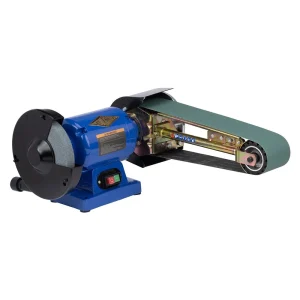

8 Inch Multitool Grinder 1HP 120V – assembled with MT484 4×48 attachment

Our largest 4×48 attachment mated to our industrial 1HP motor make this machine a workhorse! The additional length and width of the 4×48 attachment provide loads of surface area. The extra long and extra wide precision top platen is for straightening, flat finishing, or profiling large pieces. Additionally the longer belt length offers increased belt wrap on the underside slack belt surface for external contouring and blending.

The front contact wheel can be used for smooth controlled grinding, contouring, or internal finishing. The large 7 inch disc sander on the side offers plenty of surface area to work with for beveling, deburring, squaring and general sanding. The quick change belt system allows you to change from grinding to polishing in seconds. The belt attachment can operate in a horizontal or vertical position.

Features of this Multitool Grinder with Attachment

Heavy duty cast iron grinder body & base with pre-drilled mounting holes

Adjustable tool rest & large eye shield

Full OSHA approved safety guards

Hi-Viz on/off switch with removable safety key

5 grinding positions: contact wheel, flat platen, slack belt, disc, and grinding wheel

Belt attachment can be operated in vertical or horizontal position

Precision top platen can be used for perfect flat finishing

The tool free quick change belt system allows the operator to go from rough grinding, to finishing & polishing in seconds

CSA/CUS & UL Certified

1HP Industrial motor
Heavy duty cast iron grinder body & base with pre-drilled mounting holes
Adjustable tool rest & large eye shield
Full OSHA approved safety guards
Hi-Viz on/off switch with removable safety key
5 grinding positions: contact wheel, flat platen, slack belt, disc, and grinding wheel
Belt attachment can be operated in vertical or horizontal position
Precision top platen can be used for perfect flat finishing
The tool free quick change belt system allows the operator to go from rough grinding, to finishing & polishing in seconds
CSA/CUS & UL Certified
Dimensions: 22″ x 22″ x 12″
Motor: 120 Volts, 6 Amps, 1 Hp
Platen Size: 4″ x 11.25″
Belt Speed (FPM): 5,400
RPM: 3,450

*Note: Specifications are approximate and subject to change.
