Availability: 5 in stock

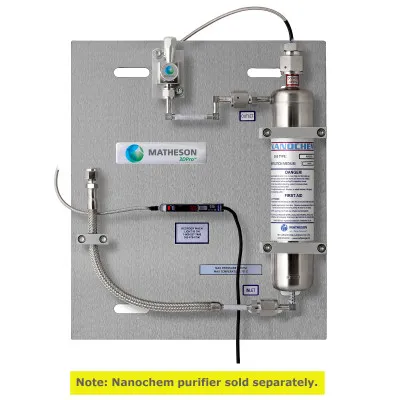

Matheson’s 3D Pro Purifier panel ensures that the highest quality of gases are delivered to your process. (Photo shown shows Nanochem purifier installed. Nanochem purifier sold separately)
• 3D metal printing sinter furnace
• Other applications needing high purity gas
• Ideal for High (UHP 99.999%+) or Low Purity gas delivery.
• Compact design minimizes wall space consumption.
• Design allows convenient access to all components.
• 150 psi working pressure
• 1/4” compression tube inlet/outlet connection
• Panel Dimensions: 12” W x 14“ H
• Material: Stainless Steel
• Maximum Flow with purifier: 50 SLPM – Nitrogen
• Maximum Inlet Pressure: 150 psi
• Maximum Operating Pressure: 150 psig
• Maximum Flow Rate: In Excess of 50 L/min
Typical Performance:
| Impurity | Efficiency (ppb) |
Challenge (ppm) |
| H2O in Ar | <0.3 (LDL*) | 35 |
| O2 in Ar | <0.14 (LDL) | 1 |
| CO2 in He | < 11 (LDL) | 500 |
* Lowest Detectable Limit
