3571-350-2T Series Single-Stage High-Purity Miniature Regulator – SS

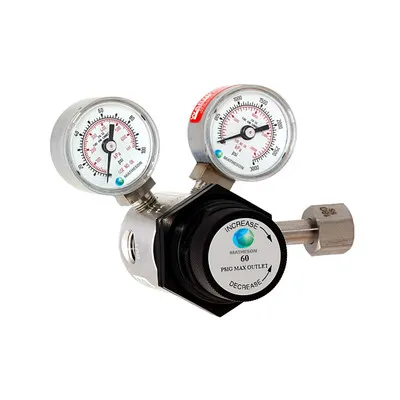

Compact, high-purity regulator (30 psi max delivery pressure) for use in VOC applications where the VOC components are ≥ 1 ppm in 1I & 2I cylinders. (Photo is not accurate)

Design Features

• High-purity 316L stainless steel barstock body
• High-purity 316 stainless steel diaphragm
• 1-1/2” inlet and delivery pressure gauges
• CGA 350 inlet connection
• 1/8” Compression outlet connection
• Porous metal filter protects seat from contaminants
• Panel mountable
• 0-3000 psi cylinder pressure gauge

Materials of Construction

• Gauges: 316 stainless steel
• Body: 316L stainless steel
• Diaphragm: 316 stainless steel
• Seat: Kel-F 81
• Seals: Teflon

Specifications

• Maximum Inlet Pressure: 3000 psi (20,700 kPa)
• Maximum Flow Rate: 11 SCFH (5 SLPM)
• Flow Capacity (Cv): 0.06
• Operating Temperature: -40°F to 140°F (-40°C to 60°C)
• MaxDelivery Pressure: 30 psi
• Inlet Fitting: CGA 350
• Outlet Fitting: 1/8”Compression
• Porting (Regulator Body): 1/4” NPT Female
• Gauge Ports: 1/8” NPT Female
• Porting Configuration: 2 Low, 2 High
